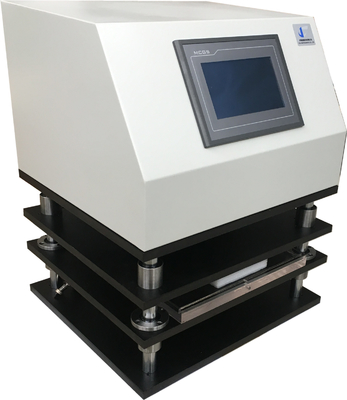

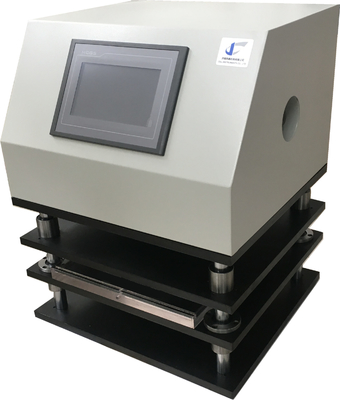

Package compressive force tester

Package compressive force tester is applied to infusion bags, plastic infusion bottles, blood bags, ice bags, etc. It can also be used for pressure resistance measurement of composite film pack , paper cup/bowl, etc., which are used in food, medicine, cosmetics etc.

Package compressive force tester Test principle

The sample to be tested is placed between the upper and lower pressure plates, and the upper pressure plate is operated downward, and the force value of the lower pressure plate is collected in real time to test the bursting performance of the package and constant pressure resistance capacity.

Package compressive force tester technical characteristics

1. HMI touch screen parameter setting and test operation

2. Industrial grade PLC control system

3. Two test modes of maximum bursting force test and constant pressure resistance

4. Automatic constant pressure compensation adjustment function

5. with automatic data statistics

6. Liquid collection device to avoid contamination in case of sample rupture

7. Non-standard test size can be customized

8. Professional software is an option

Specification

Measuring range 2000N (other optional)

Measurement accuracy: 0.5 %

Time range: 0~10000S

Platen size: 250mm*300mm (can be customized)

Power supply 220V, 50HZ

Dimension: 460mm*410mm*590mm

Standards

GB/T 10004, YBB 00112005
