Tablet compression force tester Tablet Needle Probe Peneration Teste burst test equipment

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number MPT-02
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Usage Tablet Compression Testing Instrument
Product Name Tablet Compression Tester
Leave a Message
Product Description

Tablet compression force tester measures the hardness of tablet under a certain force. The force measured can be taken as a guide in production.



Tablet compression force tester working principle

A tablet sample is place on sample holder and the pressing probe is driven down at the speed of 1~25 mm/m(or others). The breaking strength is detected by the high precision load cell when the probe touches the tablet and breaks it.

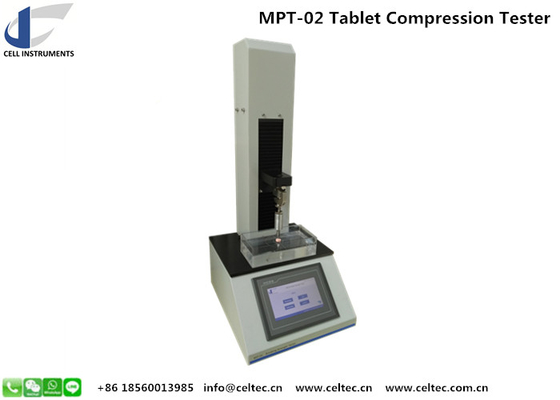

Tablet compression force tester Tablet Needle Probe Peneration Teste burst test equipment 0

Tablet compression force tester technical features

      1.       7 inch TFT touch screen operation

2.       PLC  control

3.       Precision ball screw for accurate speed and displacement.

4.       Support different specifications tablet

5.       Test speed adjustable.

6.       Microprinter for easy data output

7.       RS 232 and professional software (optional)

9.       Limiting device and automatic returning function

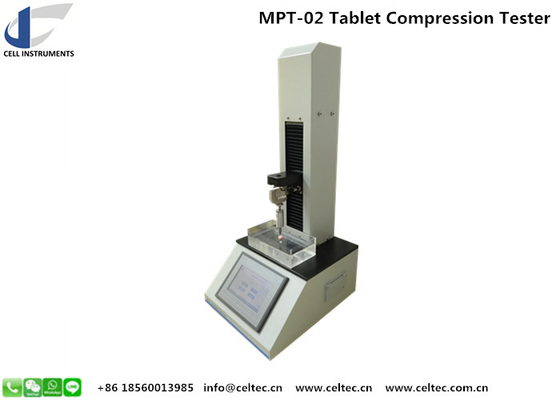

Tablet compression force tester Tablet Needle Probe Peneration Teste burst test equipment 1

Tablet compression force tester technical Specifications



Test Range  0-200N (Standard)
Speed  1~25 mm/m (other speeds available)
Up adjust speed  600mm/min
Down adjust speed  100mm/min
Power  AC 110~0220V 50Hz

Tablet compression force tester Tablet Needle Probe Peneration Teste burst test equipment 2

Ampoule break force tester Standard

DIN/ISO 9187

Tablet compression force tester Tablet Needle Probe Peneration Teste burst test equipment 3

Cell Instruments is committed to development of material testing instruments for plastic, paper, bottle, box, containers, etc., PLC program and machinery customization. Please contact +86 531 88977152 (mail: info#celtec.cn Skype: smrelin ) for more information. Let us be a cell of your quality.
