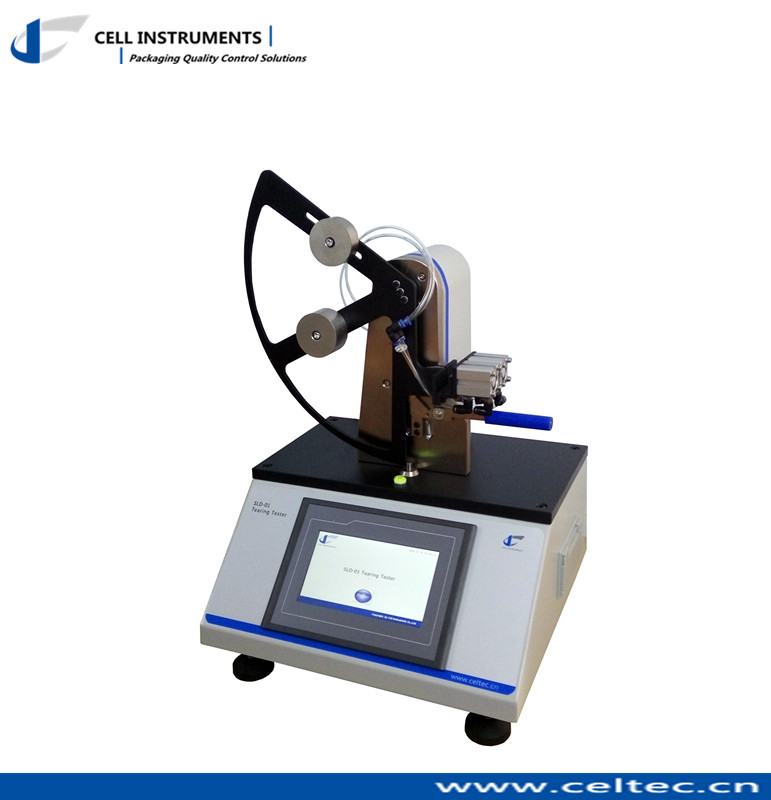

Paper Film Material Elmendorf Tearing Tester Elmendorf Tear Strength Tester

Place of Origin	China
Brand Name	Cell Instruments
Certification	CE
Model Number	SLD-01
Minimum Order Quantity	1 SET
Price	Get An Offer
Packaging Details	Plywood Carton
Delivery Time	3~5 days
Payment Terms	TT, LC
Supply Ability	At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Material	Film, Paper, Fabric	General Use	Tearing Strength Or Force Test
Product Name	Elmendorf Tear Tester	Application	Material Tearing Force Tester
Packing	Export Plywood Carton

Leave a Message

Product Description

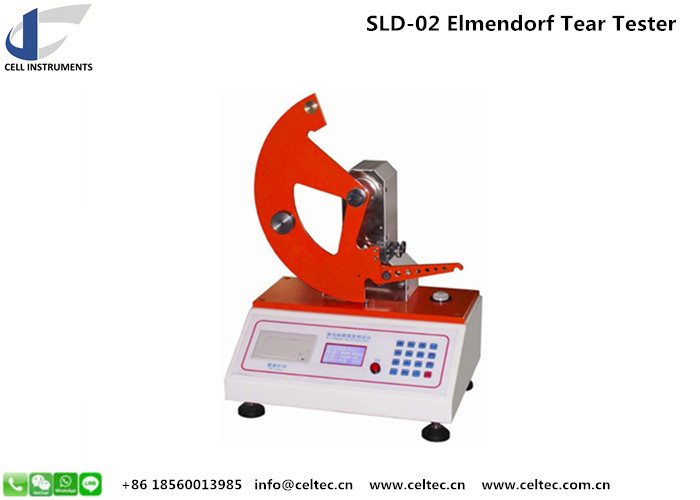

Textile Elmendorf tear strength tester is used to determinate tearing resistance property of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.

Textile Elmendorf tear strength tester complies with below standards:

ASTM D1922, ASTM D1424, ASTM D689, ISO 6383, ISO 1974, GB/T16578.2-2009, GB/T 455, TAPPI T414

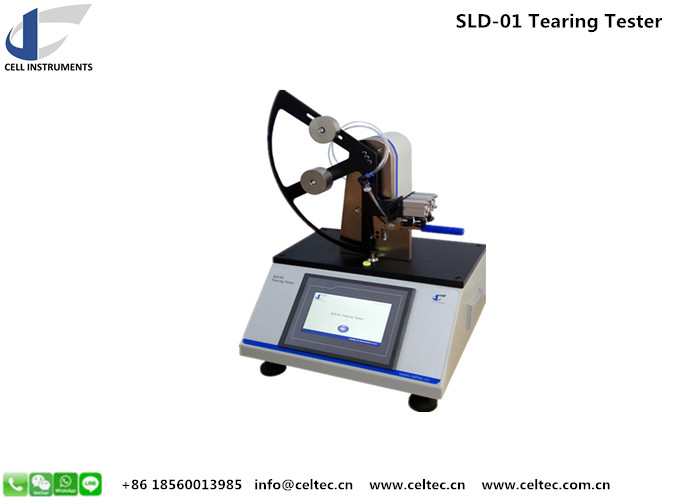

Paper Film Material Elmendorf Tearing Tester Elmendorf Tear Strength Tester 0

Technical features

1	PLC technology and human-machine interface.
2	Wide test range for different materials
3	Pneumatic specimen clamping
4	Pendulum automatic release
5	Data auto statistics, storage
6	Microprinter
7	RS232 port and software (Optional)

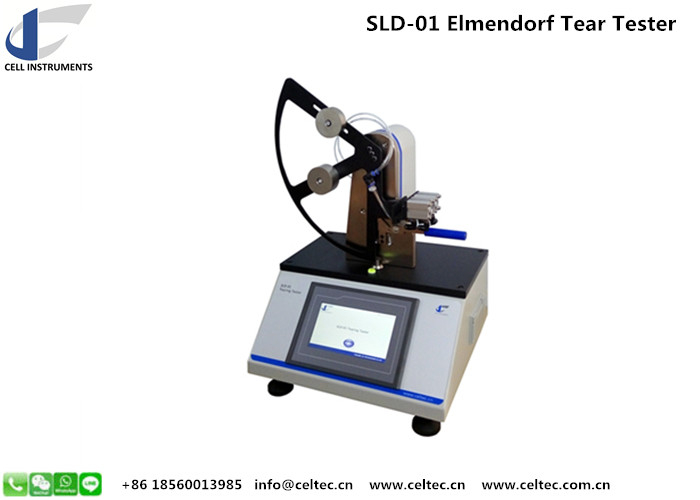

Paper Film Material Elmendorf Tearing Tester Elmendorf Tear Strength Tester 1

Textile Elmendorf tear strength tester Technical data

Pendulum Capacity	200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf
Gas Source	0.6 MPa
Tearing Arm	104±1mm
Tearing Initial Angle	27.5 ±0.5°

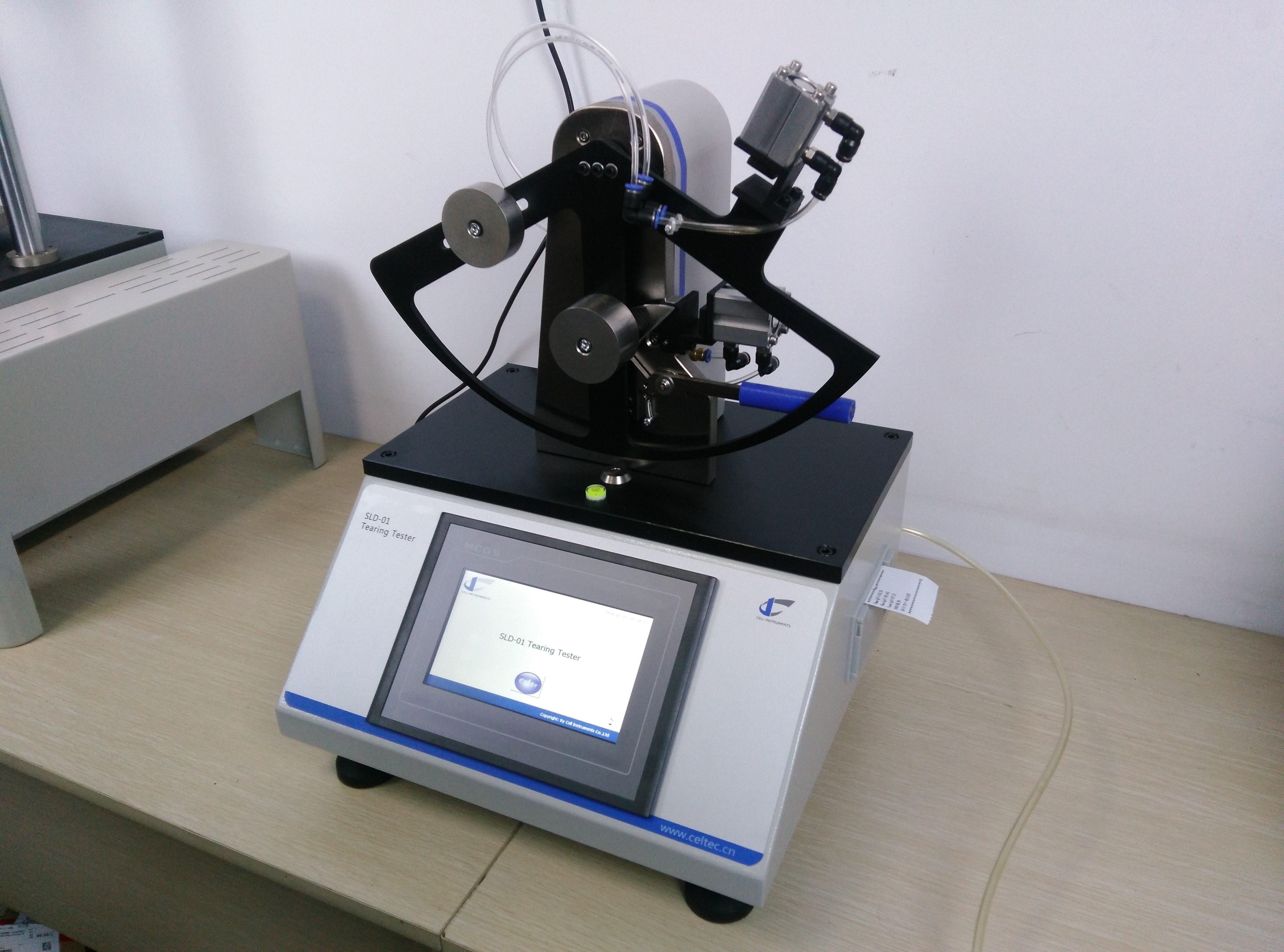

Paper Film Material Elmendorf Tearing Tester Elmendorf Tear Strength Tester 2

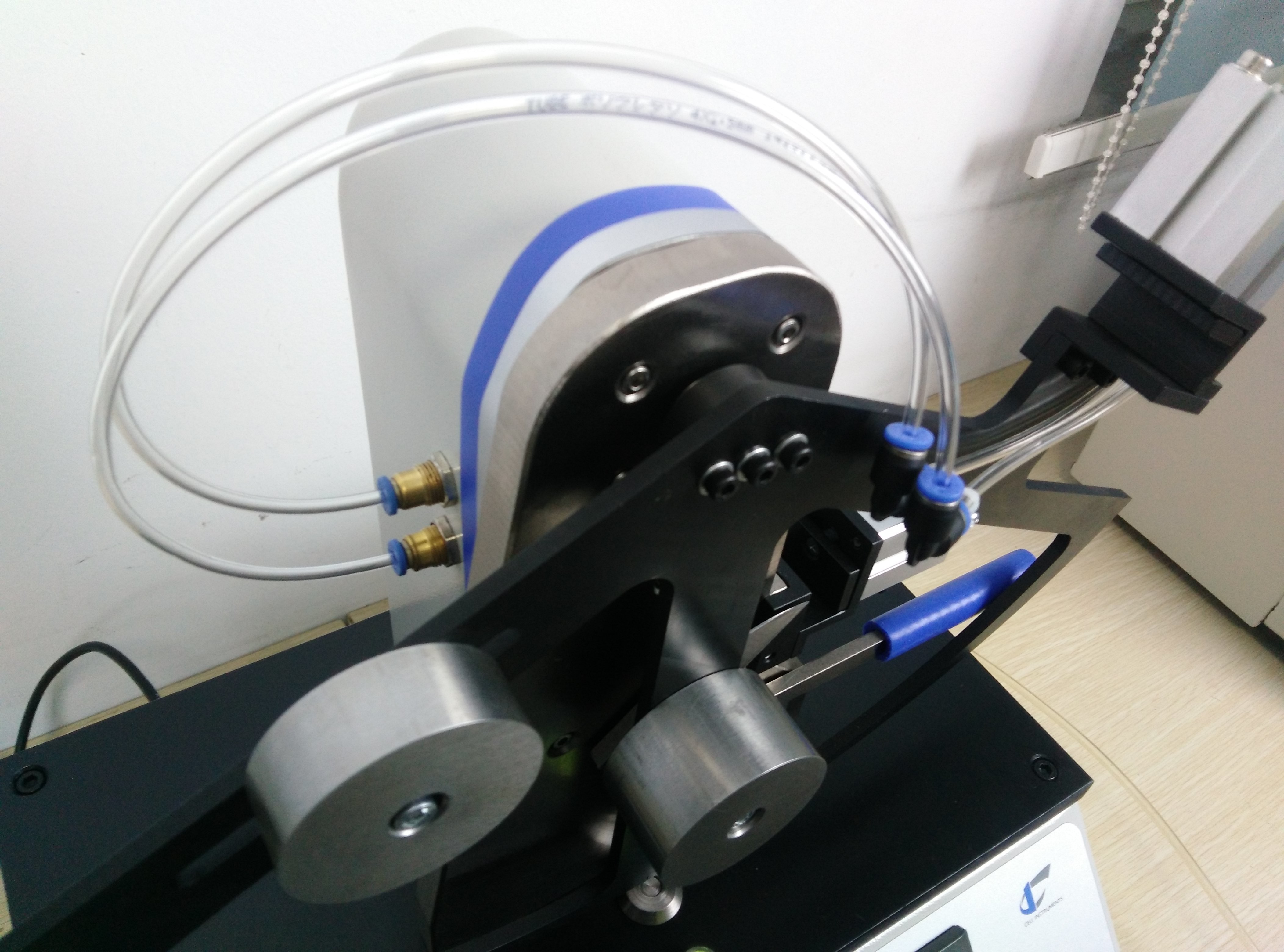

Paper Film Material Elmendorf Tearing Tester Elmendorf Tear Strength Tester 3

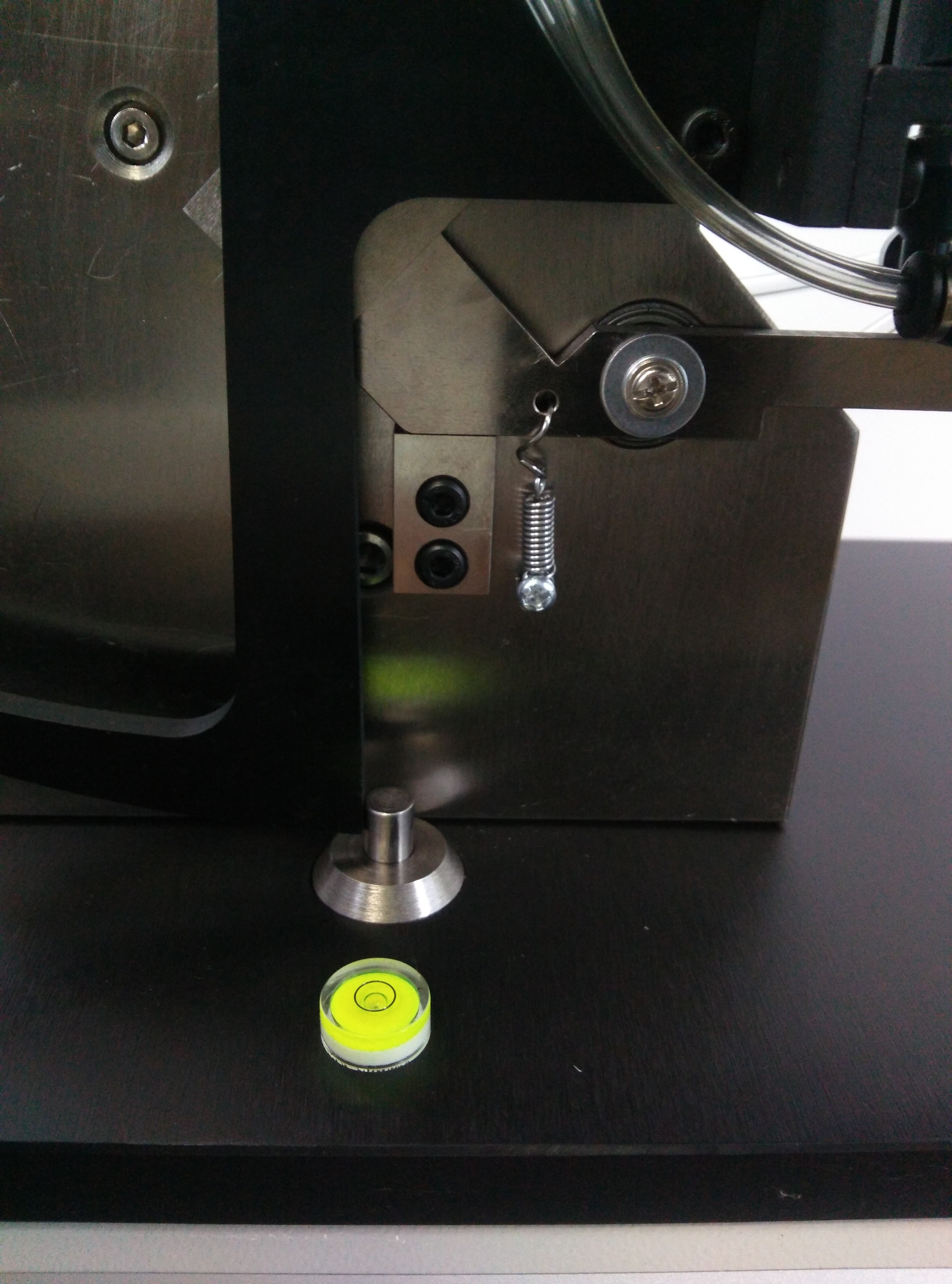

Paper Film Material Elmendorf Tearing Tester Elmendorf Tear Strength Tester 4
