POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE PACKAGING HEAT SEALER LABORATORY HEAT SEALER
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Plastic | Power: | 220V |
|---|---|---|---|
| Standards: | ASTM F2029 | Control: | PLC And HMI Touch Screen |

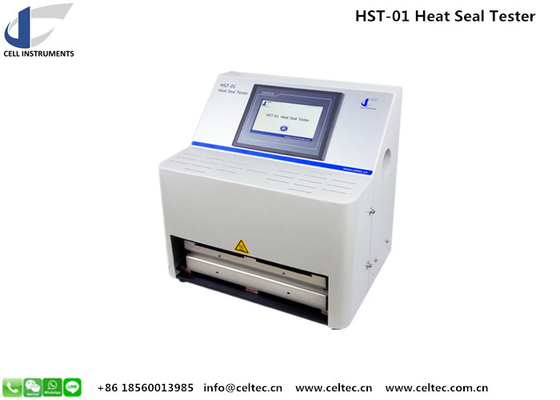

POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE is used for the precise measurement of sealing temperature, time and pressure.
Test Standards
ASTM F2029, QB/T 2358 and YBB 00122003.
Technical features
1. 7 inch TFT touching screen makes parameter setting and operation easy and convenient for Heat Seal Tester.
2. PLC for precise dwell time and sealing pressure control
3. P.I.D. for precise sealing temperature control
4. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating
5. Independent heating of upper and lower sealing jaws
6. Sealing jaw customization available in term of dimension, shape and surface
Technical data of heat seal tester
|
temperature |
Room Temperature ~ 300℃ |
|
Deviation |
±0.2℃ |
|
Dwell time |
0.1 s~9999s |
|
Sealing pressure |
0.15 MPa ~ 0.7 MPa |
|
Sealing Jaws |
330mm×10mm(Sealing Surface) |
|
Double Heating of Upper and Lower Jaws |
(Customization Available) |
