ASTM F1140 PRESSURE DECAY LEAK TESTER FOR MEDICAL PACKAGE GAS PAPER INTERNAL BURST AND CREEP TESTER LEAK AND SEAL TESTER

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number LSST-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standards ASTM F1140 ASTM F2054 Method Pressure Decay Positive Pressure Method
Brand Cell Instruments
Leave a Message
Product Description

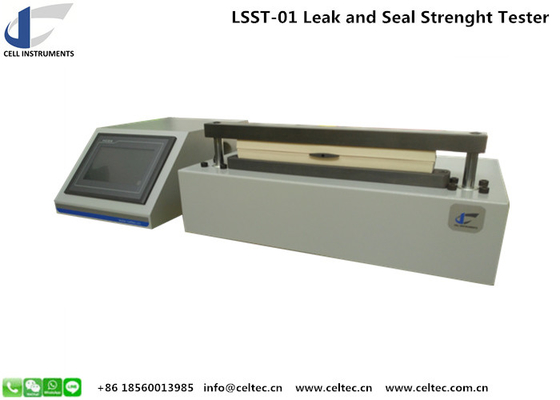

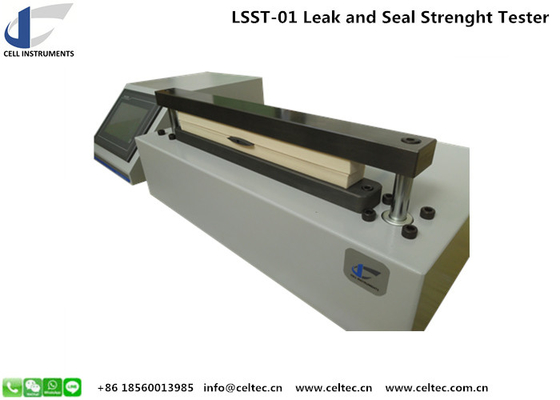

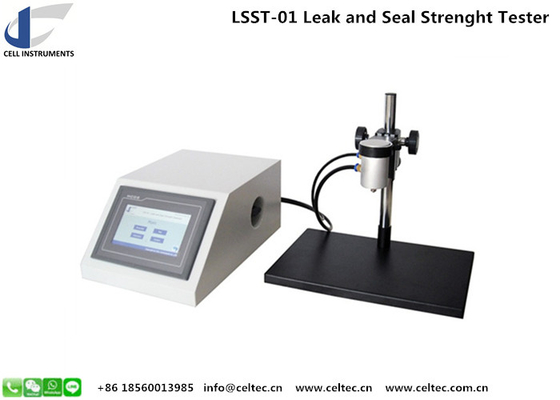

ASTM F1140 PRESSURE DECAY LEAK TESTER tests sealing strength, heating sealing quality, burst pressure and leakage of flexible and aseptic packages. The Burst Tester can also be used to determine the sealing performance of pilfer-free bottle caps and soft tubes.



The compression strength, connection strength of cap and body, cap losing strength, seal strength and butting strength of tubes are also the applications.



It has three test modes

  1. Burst Test: internally pressurizes the packages until the package fails. The test pressure is the maximum pressure detected before the package fails.
  2. Creep Test: Pressurize the package internally to a specific pressure and maintains this pressure for a specific time. The test measure is pass/fail.
  3. Creep to Failure: The package is creep-tested and held until the package fails. The pressure setting is higher than that of the creep test to ensure the package fails in some time. The measure is the time until failure.



ASTM F1140 PRESSURE DECAY LEAK TESTER FOR MEDICAL PACKAGE GAS PAPER INTERNAL BURST AND CREEP TESTER LEAK AND SEAL TESTER 0



Technical Features of ASTM F1140 PRESSURE DECAY LEAK TESTER

  1. Three test modes of burst, creep and creep to failure are available
  2. PLC programmable logic controller realizes precise pressure and time control.
  3. 7 inch TFT touching screen for convenient parameter setting and test operation.
  4. Multiple groups of test parameters can be save to avoid the repetitive setting time.
  5. Test result auto statistics and storage.
  6. Dual test methods of restraint distension and unrestraint distension
  7. Program customization available.
  8. Test result keeping
  9. Multi units support

ASTM F1140 PRESSURE DECAY LEAK TESTER FOR MEDICAL PACKAGE GAS PAPER INTERNAL BURST AND CREEP TESTER LEAK AND SEAL TESTER 1

Burst Tester Technical Specifications





Pressure Range  0 ~ 600 KPa
Inflating Head  Φ4mm (Standard)
Gas Pressure  0.4 MPa~0.9 MPa
Port Size  Φ6 mm PU hose
Dimensions  400 mm (L) × 270 mm (W) × 180 mm (H)
Pedestal Size  375 mm (L) × 275 mm (W) × 345 mm (H)



Burst Tester Standards

ISO 11607-1, ISO 11607-2, ASTM F1140, ASTM F2054
