PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE

  • PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE
  • PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE
  • PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE
  • PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE
  • PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE
Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number TST-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 220V/50HZ Or 110V/60HZ Usage Tensile Testing Machine
Warranty 12 Months Weight 75kg
Product Name Electronic Tensile Testing Machine Stroke 800mm
Leave a Message
Product Description

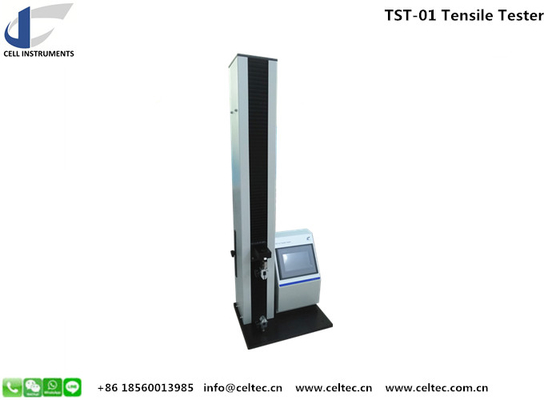

PLASTIC FILM TENSILE AND ELONGATION TESTER is used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials, plastic flexible tube, etc. It

PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE 0

Plastic film tensile and elongation tester features

  1. 7 inch TFT touch screen operation
  2. PLC control
  3. Precision ball screw
  4. Test speed adjustable.
  5. Multiple testing items can be chosen
  6. Multiple fixtures available
  7. Data storage and analysis
  8. Limiting device and automatic returning function



PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE 1

Plastic film tensile and elongation tester technical specifications



Test Range 0-500N (Standard, 50N,100N,200N are optional)
Stroke 800mm (other stroke available)
Test Speed 1~500mm/min
Displacement Accuracy 0.01mm
Accuracy 0.5% F.S.
Sample Width 27mm (other optional)
Control PLC and human machine interface
Data Output Screen, Microprinter (optional), RS232(optional)


PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE 2

Standards



ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113



PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE 3PLASTIC FILM TENSILE AND ELONGATION TESTER ASTM D882 CONSTANT RATE OF ELONGATION TESTING MACHINE UNIVERSAL TEST MACHINE 4
