RCT ECT FCT TESTER PAPER AND BOARD CRUSH TESTER RING CRUSH EDGE CRUSH FLAT CRUSH PLYBOND ADHESION TESTER

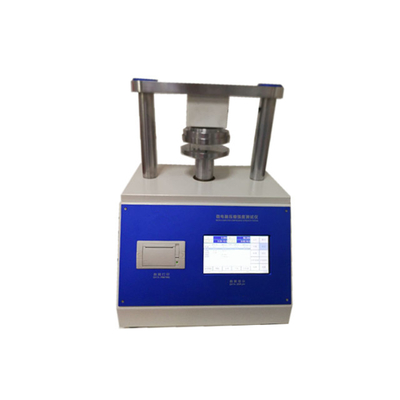

Large Image : RCT ECT FCT TESTER PAPER AND BOARD CRUSH TESTER RING CRUSH EDGE CRUSH FLAT CRUSH PLYBOND ADHESION TESTER

Product Details:

Place of Origin:	China
Brand Name:	Cell Instruments
Model Number:	YSD-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	quote on demand
Packaging Details:	export carton
Delivery Time:	3~5 days
Payment Terms:	TT LC

Contact Now

Detailed Product Description

Power:	220V	Usage:	Paper Testing Instrument
Warranty:	12 Months	Application:	Paper And Boards
Name:	Digital Paper Crush Tester

Paper and Board Crush Tester(ring crush, edge crush, flat crush, plybond adhesion) is used for the ring crush(RCT) for paper with thickness between 0.15 and 1mm, edge crush(ECT), plybond adhesion (PAT) and flat crush(FCT) test for board.

Paper and Board Crush Tester can also be used for the compression test (CMT) for tube with diameter less than 60mm.

Paper and Board Crush Tester Technical Features

Four test modes of RCT, ECT, FCT and PAT available
Microcomputer control, auto measuring and test result judgment, auto returning.
Curve Real time display, data auto collecting, calculating, analysis, storage & printing.
Touch screen operation
Synchronous motor drive for precise pressure output.

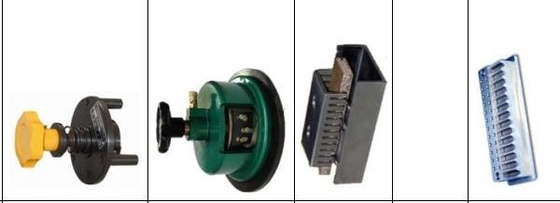

RCT ECT FCT TESTER PAPER AND BOARD CRUSH TESTER RING CRUSH EDGE CRUSH FLAT CRUSH PLYBOND ADHESION TESTER

Paper and Board Crush Tester technical data

Test range	5-3000N
Accuracy	≤±1%
Resolution	0.01N
Platen parallelism	≤0.05mm
Upper platen diameter	125mm
Lower platen diameter	125mm
Compression speed	12.5±1mm/min
Stroke	80mm

Standards to follow

ISO 12192, ISO 3035, ISO 3037, ISO 7263, GB/T2679.6, GB/T6546, GB/T2679.8, GB/T6548

RCT ECT FCT TESTER PAPER AND BOARD CRUSH TESTER RING CRUSH EDGE CRUSH FLAT CRUSH PLYBOND ADHESION TESTER
