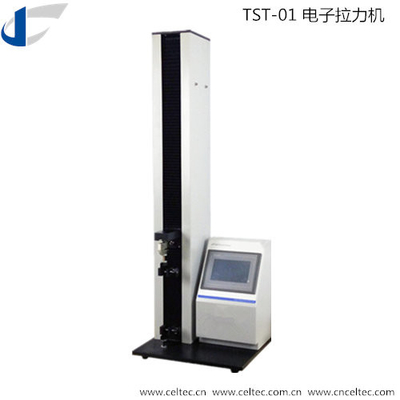

ASTM D882 ELONGATION TESTER TENSILE TESTING MACHINE TENSILE STRENGTH TESTING ASTM D3330

Large Image : ASTM D882 ELONGATION TESTER TENSILE TESTING MACHINE TENSILE STRENGTH TESTING ASTM D3330

Product Details:

Place of Origin:	China
Brand Name:	Cell Instruments
Model Number:	TST-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	export carton
Delivery Time:	7 days
Payment Terms:	TT LC
Supply Ability:	100 sets/m
Minimum Order Quantity:	1 set

Contact Now

Detailed Product Description

Usage:	Tensile Testing Machine	Warranty:	12 Months
Weight:	75kg	Product Name:	Electronic Tensile Testing Machine
Stroke:	800mm	Test Speed:	1-500mm/min (adjustable )
Screw:	High Precise Ball Screw	Function:	Tensile Strength Test,compression Test,Materials Testing,3-point Bending Test

ASTM D882 elongation tester is used to measure force properties of materails in tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance.

ASTM D882 ELONGATION TESTER TENSILE TESTING MACHINE TENSILE STRENGTH TESTING ASTM D3330

ASTM D882 elongation tester technical features

7 inch HMI touch screen operation
PLC control
Precision ball screw
Test speed adjustable.
Multiple testing items can be chosen
Multiple fixtures available
Data storage and analysis
Limiting device and automatic returning function

ASTM D882 ELONGATION TESTER TENSILE TESTING MACHINE TENSILE STRENGTH TESTING ASTM D3330

ASTM D882 elongation tester technical specifications

Test Range	0-500N (Standard, 50N,100N,200N are optional)
Stroke	800mm (other stroke available)
Test Speed	1~500mm/min
Displacement Accuracy	0.01mm
Accuracy	0.5% F.S.
Sample Width	27mm (other optional)
Control	PLC and human machine interface
Data Output	Screen, Microprinter (optional), RS232(optional)

ASTM D882 ELONGATION TESTER TENSILE TESTING MACHINE TENSILE STRENGTH TESTING ASTM D3330

Standards

ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113

ASTM D882 ELONGATION TESTER TENSILE TESTING MACHINE TENSILE STRENGTH TESTING ASTM D3330
