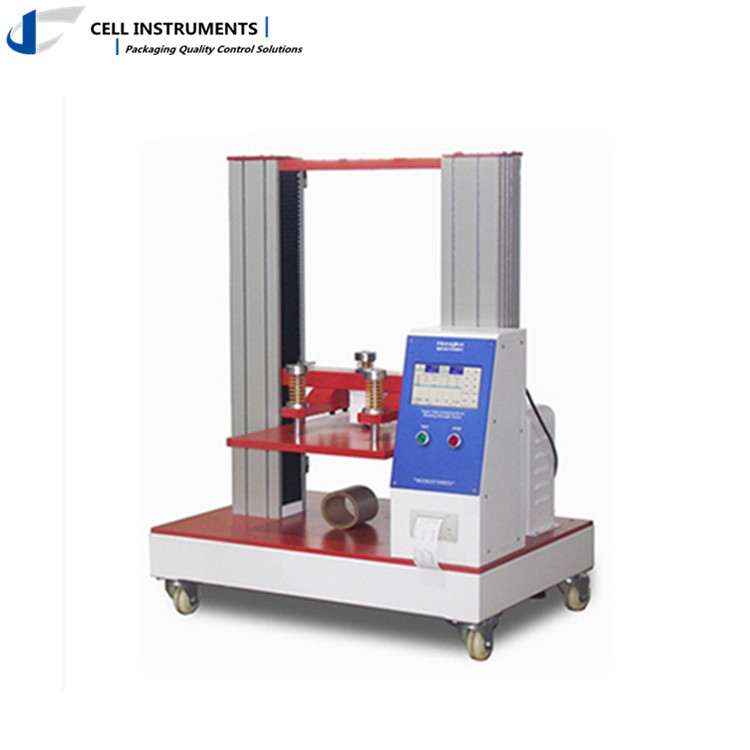

BOX COMPRESSION TESTER BCT CARTON COMPRESSING AND STACKING TESTER
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Box Compression Tester | Testing Space: | 400mm(L)*600mm(W)*600mm(H) Or Large |
|---|---|---|---|
| Display: | Touch Screen Color | Force Range: | 10KN Or Others |
BCT CARTON COMPRESSING AND STACKING TESTER is for the compression strength and stacking ability of medium and samll size packagings like corrugated carton.
Technical Feature of BCT CARTON COMPRESSING AND STACKING TESTER
- Touch screen operation
- Microcomputer processing system, automatic measurement, test result intelligent judging, self-return
- Auto data collecting and computing,
- Embedded micro printer
- Real-time display of compression force, deformation and curve
- Three test modes of compression resistance, stacking and compression at fixed time and pressure
- Synchronous motor and accurate thread lead screw drive system
Technical Data of BCT CARTON COMPRESSING AND STACKING TESTER
|
Pressure range
|
0-10KN(other load available) |
| Force resolution | 0.1N |
| Display variation | ≤2% |
| Compressing speed range | 5mm/min～90mm/min |
| compressing speed | 12mm/min |
| Stacking test speed | 5mm/min |
| Lower platen stroke | 800mm |
| Test space | 400mm(L)*600mm(W)*600mm(H) |
| Other Spaces Available | 600mm*800mm*800mm；800mm*1000mm*1000mm； 1000mm*1200mm*1200mm；1200mm*1200mm*1200mm) |
BCT carton compression tester Standard: ISO2874 Tappi T804
