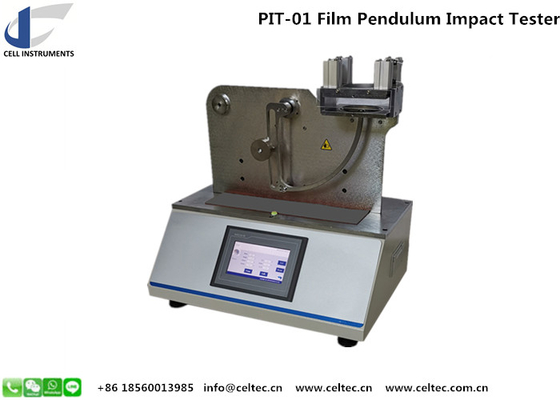

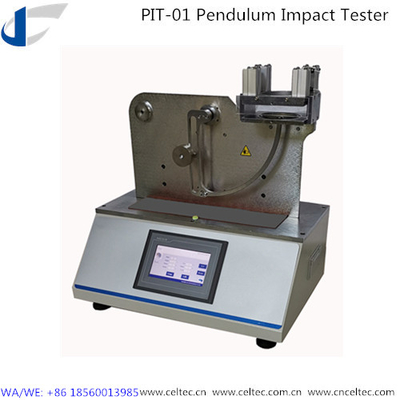

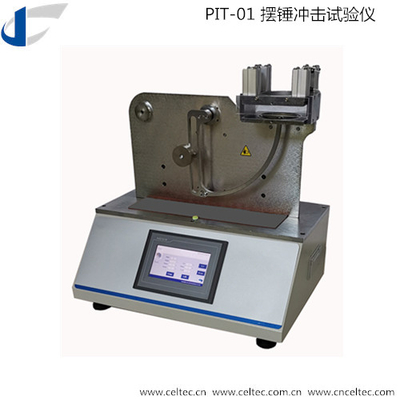

Pneumatic Release Falling Pendulum Impact Tester For Polymer Film

Large Image : Pneumatic Release Falling Pendulum Impact Tester For Polymer Film

Product Details:

Place of Origin:	China
Brand Name:	Cell Instruments
Model Number:	PIT-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	export carton
Delivery Time:	7 days.
Payment Terms:	TT LC
Supply Ability:	100 set/week

Contact Now

Detailed Product Description

Power:	AC220V	Usage:	Impact Testing Machine
Product Name:	Pendulum Impact Tester

Pneumatic Release Falling Pendulum Impact Tester For Polymer Film measures the energy to burst and penetrate the center of a specimen, which is determined by loss in mechanical work capacity due to the expenditure of kinetic energy by a pendulum. The test gives a quantitative measurement of impact resistance properties of pendulum of films, sheets, composites, foils, paper and other materials.

Pneumatic Release Falling Pendulum Impact Tester For Polymer Film conforms to standards: ASTM D3420, NF T54-116, GB 8809

● PLC control and HMI touch screen operation

● Pneumatic specimen clamping and pendulum automatic release

● Data auto statistics, storage

● Precious angle measurement

● Support customized Microprinter

● RS232 port and software (Optional)

Pneumatic Release Falling Pendulum Impact Tester For Polymer Film

Technical parameters

Impact Energy	1 J, 2 J, 3 J (could be modified)
Resolution	0.001 J
Impact Head Size	Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization available)
Specimen Clamp Diameter	Ф89 mm, Ф60 mm
Specimen Size	100 mm x 100 mm or Ф100 mm
Gas Supply Pressure	0.6 MPa
Port Size	Ф6 mm
Power Supply	AC 110~220V 50/60 Hz

Pneumatic Release Falling Pendulum Impact Tester For Polymer Film
