Paper Textile Thickness Measurement Tester Resolution 0.1μM Iso 4593 Astm D1777 Complied
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | 110~220V | Usage: | Thickness Tester |
|---|---|---|---|
| Product Name: | Film Thickness Tester | Accuracy: | 0.1 μm |
| Display: | HMI Touch Screen Display | Warranty: | 12 Months |
| Calibration Block: | Included |
Plastics film and sheeting Thickness gauge tester measures the thickness of plastic films, sheets, board, fabrics, textile, membranes, paper, foil, wafers and other materials, etc.
Working Principle of mechanical scanning thickness tester
A specimen is placed on the base and a weighted presser foot lowered. The displacement between the base and the presser foot is measured as the thickness of the specimen.
Plastics Film and sheeting Thickness gauge tester Technical Features
- PLC control and HMI touch screen operation

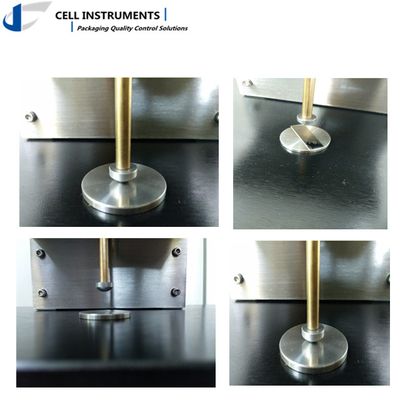

- Standard conformed hemispherical measure head is equipped
- Presser foot automatic lifting
- Real time display of maximum, minimum, average and standard deviation
- Test result storage and micro printing
- RS232 port and software (Optional)
THICKNESS TESTER MECHANICAL SCANNING CONTACT METHOD Technical data
| Test Range | 0~2mm |
| Resolution | 0.1 μm |
| Mesure Head | Hemispherical type |
| (Optional) Flat Foot | 17.5±1 KPa/50 mm2 (for film) |
| (Optional) Flat Foot | 50±1 KPa/200 mm2 (for paper) |
| Power AC | 110~ 240V 50/60Hz |
It complies with the following standards:
ASTM D374-99: Standard Test Methods for Thickness of Solid Electrical Insulation
ASTM D1777: Standard Test Method for Thickness of Textile Materials
ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning
ISO 534-2011: Paper and board -- Determination of thickness, density and specific volume
ISO 3034:2011: Corrugated fibreboard -- Determination of single sheet thickness
TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
