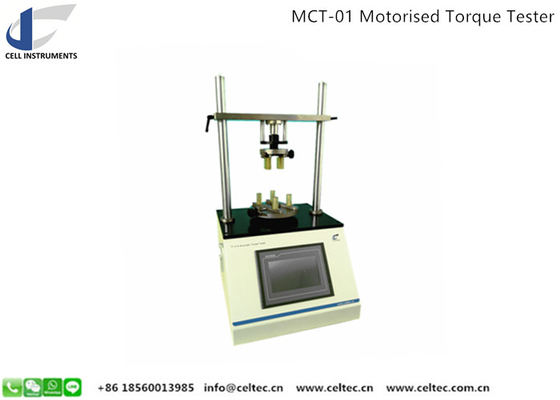

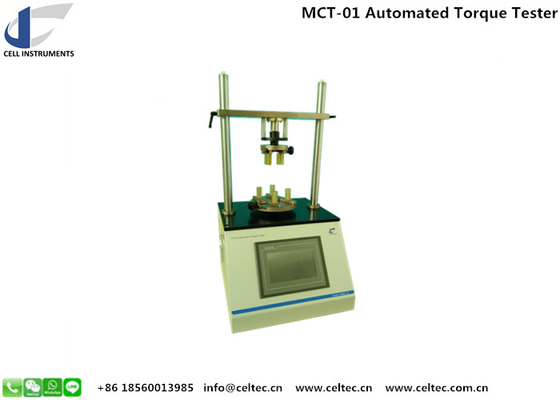

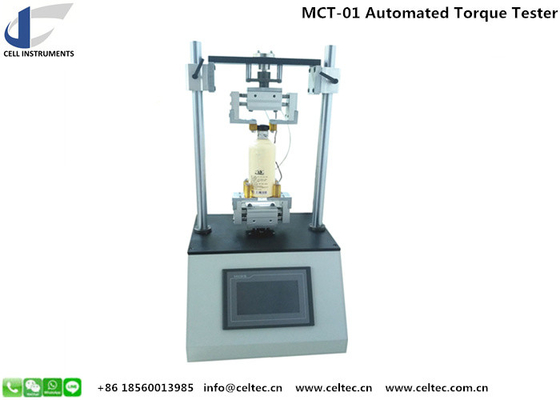

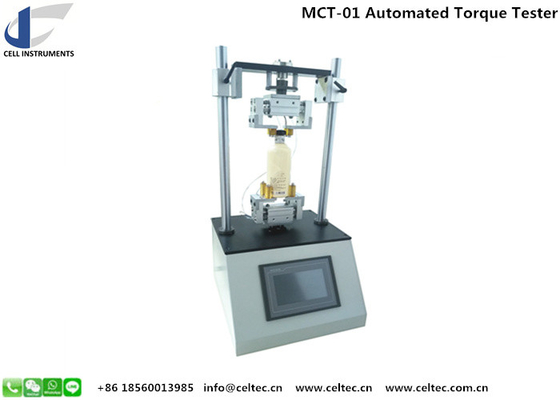

Closure Twist Torque Force Tester Motorised Automatic Torque Testing Machine For Beverage Pet Bottle
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | Electronic | Usage: | Strength Testing Machine |
|---|---|---|---|
| Test Mode: | Automatic Twisting, Both Locking And Opening Can Be Measured | Standards: | ASTM D 2063, ASTM D3198, ASTM D3474, GB/T17876, BB/T0025, BB/T0034 |
Closure Twist Torque Force Tester is used for the proper lock and open force of caps in production and thus guide the transportation and consumption process.
Closure Twist Torque Force Tester technical data
| Test Range | 10 Nm (Standard) |
| Accuracy | 1% FS |
| Clamp Range | 15mm-140mm |
| Speed Range | 0.01～15RPM |
Technical features of Closure Twist Torque Force Tester
- PLC control unit and touch screen operation
- Both locking & opening force can be measured
- Static & rotatory torque measuring up to 10 Nm
- Test parameter and data storage
- Automatic rotating
- Micro-printer
- RS232 port and professional software (optional)
Closure Twist Torque Force Tester Standards
ASTM D 2063, ASTM D3198, ASTM D3474, GB/T17876, BB/T0025, BB/T0034
