Pc Control Single Column Lab Use Table Top Tape Peel Strength Testing Machine Unwinding Force Tester

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number TST-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 220V/50HZ Or 110V/60HZ Usage Tensile Testing Machine,Strength Testing Machine,Paper Instrument,Universal Testing Machine
Warranty 12 Months Product Name Electronic Tensile Testing Machine
Accuracy ±0.5% Screw High Precise Ball Screw
Function Tensile Strength Test,compression Test,Materials Testing Stroke 800mm
Leave a Message
Product Description

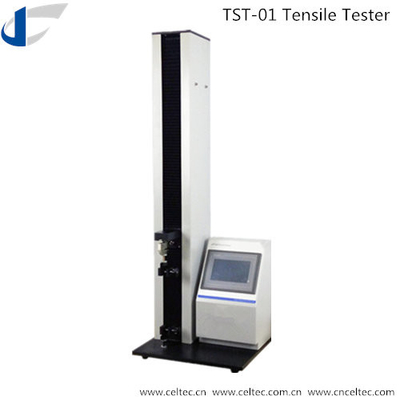

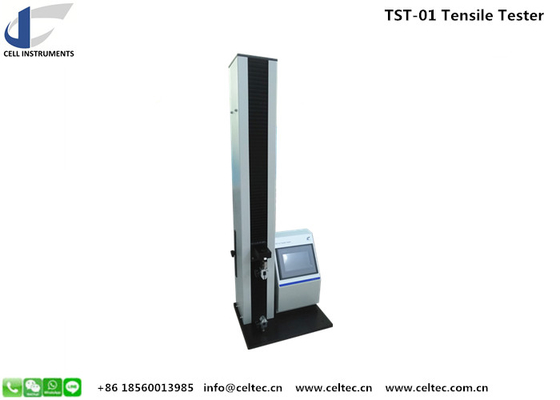

Pc Control Single Column Lab Use Table Top Tape Peel Strength Testing Machine is used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, rubber, paper, etc.

Pc Control Single Column Lab Use Table Top Tape Peel Strength Testing Machine Unwinding Force Tester 0Pc Control Single Column Lab Use Table Top Tape Peel Strength Testing Machine Unwinding Force Tester 1

Technical Features

  1. 7 inch TFT touch screen
  2. PLC programmable logic controller inside
  3. Precision ball screw realizes accurate speed and displacement.
  4. Test speed adjustable.
  5. Multiple test items are available
  6. Multiple fixtures available
  7. Limiting device and automatic returning function
  8. Microprinter(optional)
  9. Software(optional)

Pc Control Single Column Lab Use Table Top Tape Peel Strength Testing Machine Unwinding Force Tester 2

Force Range 500N or others
Speed 1~500mm/min
Sample width 27mm or as required
Stroke 800mm
Resolution 0.5% Fs

Standards

ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113



Pc Control Single Column Lab Use Table Top Tape Peel Strength Testing Machine Unwinding Force Tester 3
