Plastic Film Sheets Strength Tester Tensile Tester ASTMD882

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number TST-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nylon Material Tensile Testing Machine,Electronic Tensile Testing Machine Accuracy ±0.5%
Test Speed 1-500mm/min (adjustable ) Screw High Precise Ball Screw
Leave a Message
Product Description

Bench top tensile testers can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.

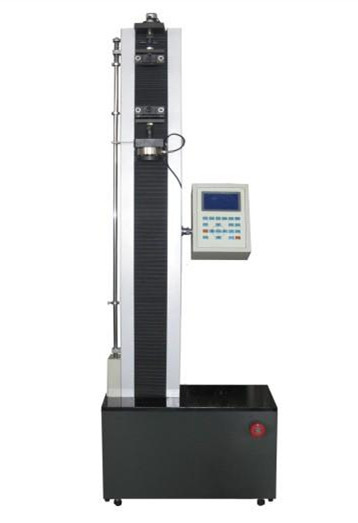

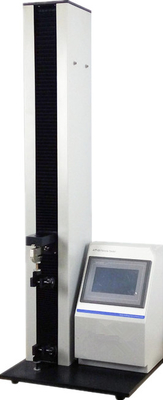

Plastic Film Sheets Strength Tester Tensile Tester  ASTMD882 0



Bench top tensile tester TST-01 features

  1. 7 inch TFT touch screen makes parameter setting and test operation easy and convenient.
  2. PLC programmable logic controller realizes precise control of the driving system and the overall performance of the instrument.
  3. Precision ball screw for accurate speed and displacement.
  4. Test speed is adjustable.
  5. Multiple test items are available.
  6. Multiple fixtures available for other types of pulling and compression tests.
  7. Limiting device and automatic returning function ensure safe operation.
  8. microprinter(optional)

Bench Top Tensile Tester Technical Specifications

Test Range 0-500N (Standard, 50N,100N,200N,1000N are optional)
Speed 1-500 mm/min
Accuracy 0.5% F.S.
Effective stroke 800mm

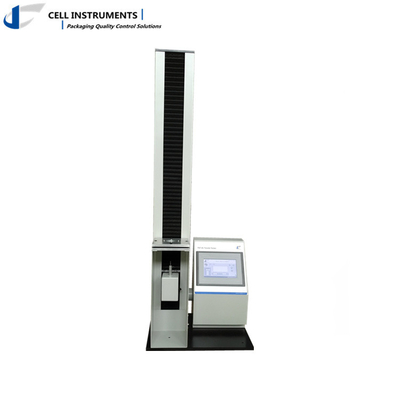

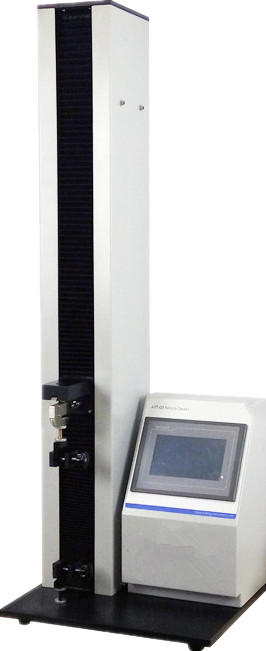

Plastic Film Sheets Strength Tester Tensile Tester  ASTMD882 1



Bench Top Tensile Tester Standards

ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113

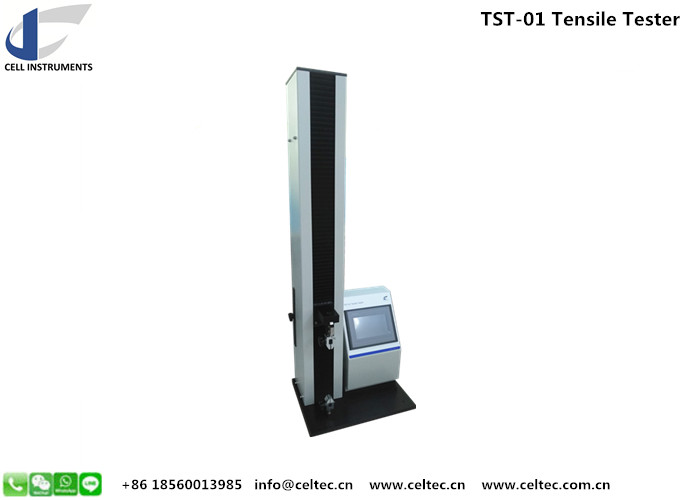

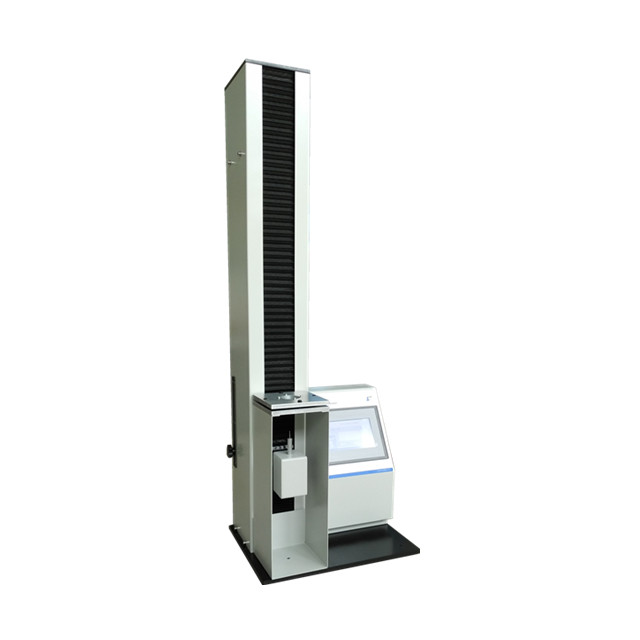

Plastic Film Sheets Strength Tester Tensile Tester  ASTMD882 2Plastic Film Sheets Strength Tester Tensile Tester  ASTMD882 3
