Heat Seal Tester Plastic Testing Equipment Polymer heat sealer tester

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number GHS-02
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Usage Plastic Testing Machine
Warranty 1 Years
Leave a Message
Product Description

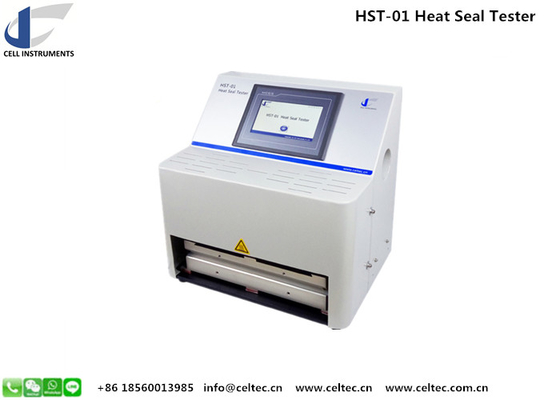

Laboratary Use Heat Sealing Test Machine Heat Sealability Tester is professionally designed for the precise measurement of five groups of sealing temperature, time and pressure.



How well the material heatseals is expressed quantitatively as seal strength as a function of the sealing conditions of temperature, time and pressure.



Five points gradient heat sealer conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.

Heat Seal Tester Plastic Testing Equipment Polymer heat sealer tester 0



Polymer Heatsealability Performance Tester gradient type has below technical features

   1. PLC control and 7 inch touching screen operation

2. Five groups sealing temperature can be measured with one test

3. Proximity and pressure sensor for precise dwell time and sealing pressure control

4. P.I.D. temperature control

5. Foot petal equipped

6. Uniform heating by aluminum encapsulated sealing jaws

7. Independent heating of upper and lower sealing jaws

8. Sealing jaw customization available

9. RS 232 port with professional software (optional)

Heat Seal Tester Plastic Testing Equipment Polymer heat sealer tester 1

Laboratary Use Heat Sealing Test Machine Heat Sealability Tester pecification

Sealing Temp. Room Temp.~300℃
Temp. Gradient ≤20℃
Deviation ±0.2℃
Sealing Time 0.1s~9999s
Sealing Pressure 0.15 MPa~0.7 MPa
Seal Jaws 40mm×10mm×5
Gas Pressure 0.7 MPa
Port Size Ф6 mm PU Hose
Power AC 220V 50Hz
