Paper Bags Pendulum Impact Tester ASTM D3420 Impact Tester For Flexible Packaging Impact Resistance Tester Use Pendulum
Background

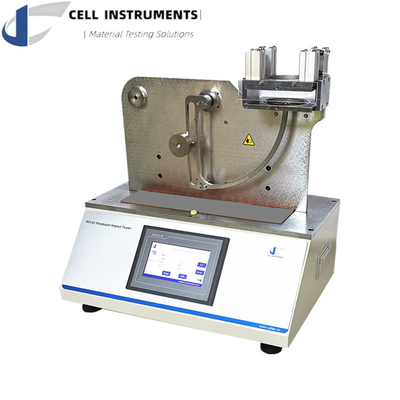

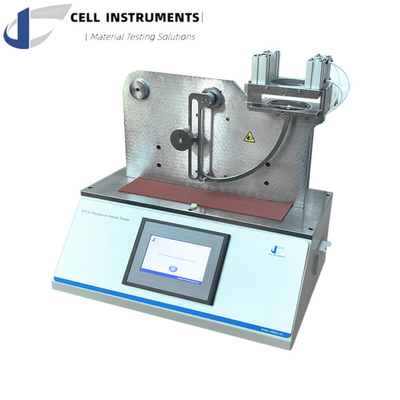

The PIT-01 Pendulum Impact Tester, compliant with ASTM D3420, is designed to measure the energy necessary to burst and penetrate the center of a specimen. This quantification is achieved by assessing the loss in mechanical work capacity resulting from the kinetic energy expenditure of a pendulum. It is an indispensable tool for evaluating impact resistance properties in various materials including films, sheets, composites, foils, and paper.
Application
Tailored for assessing impact resistance, particularly in thin films, sheets, composites, foils, and paper, the PIT-01 quantifies the energy required for rupture or penetration at a specimen's center.
Technical Features
- PLC Control and HMI Touch Screen: Ensure industrial-level stability with the Programmable Logic Controller (PLC) while providing user-friendly control through an intuitive Human-Machine Interface (HMI).
- Pneumatic Specimen Clamping: Securely holds specimens during testing, ensuring consistent and reliable clamping for accurate results.
- Pendulum Automatic Release: Automation in pendulum release enhances precision and repeatability, critical in impact resistance testing.
- Data Auto Statistics: Automates data collection and analysis from multiple test runs, streamlining the reporting process.
- Precise Angle Measurement: Accurate calculation of energy absorption during impact, a pivotal parameter in impact resistance testing.
- Microprinter: Immediate reporting of test results facilitates swift analysis.
- RS232 Port and Software (Optional): Enables advanced data management, further analysis, and storage of test data on a computer.
Main Parameter
Impact Energy | 1 J, 2 J, 3 J |
Resolution | 0.001 J |
Impact Head Size | Ф25.4, Ф19, Ф12.7 mm |
Specimen Clamp | Pneumatic Clamp |
Clamp Diameter | Ф89 mm, Ф60 mm |
Gas Supply | 0.6 MPa Φ6 mm PU Tubing |
Specimen Size | 100*100 mm or Ф100 mm |
Power Supply | AC 110~220V 50Hz |
Standards
Adhering to internationally recognized standards including ASTM D3420 and NF T54-116, the PIT-01 ensures impact resistance testing is conducted in accordance with industry benchmarks.
Importance of Impact Testing for Film and Flexible Packaging
Impact testing for film and flexible packaging, as specified by ASTM D3420, is crucial for evaluating their durability and reliability during handling and transportation. It helps in determining the ability of these materials to withstand sudden impacts and stresses, ensuring the integrity of packaged products. By employing the PIT-01 Pendulum Impact Tester, manufacturers can accurately assess the impact resistance of paper-based and flexible packaging materials, thereby enhancing product quality and customer satisfaction.
Brief Overview of ASTM D3420
ASTM D3420 outlines the standard test method for pendulum impact resistance of plastic film and sheeting. It provides guidelines for conducting impact tests to evaluate the ability of plastic films and sheets to withstand puncture or tearing under specified conditions. Compliance with ASTM D3420 ensures consistency and reliability in impact resistance testing, facilitating meaningful comparisons between different materials and ensuring product quality and safety.
