Impact Resistance Tester Pendulum Impact Tester Customize Testing Instrument Different Impact Energy Plastic Film Sheet

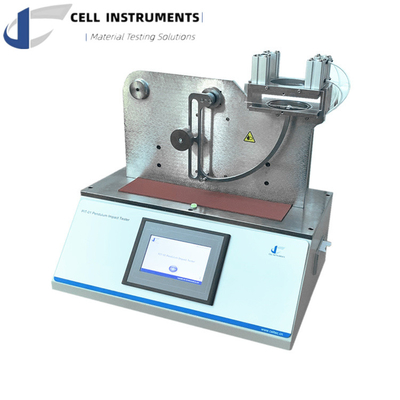

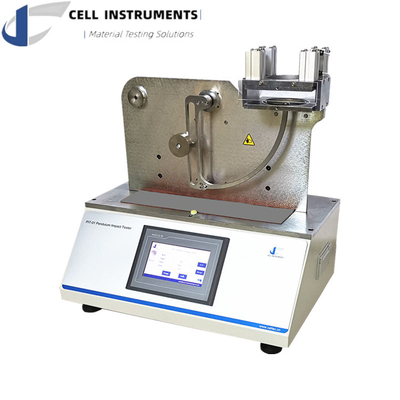

The Plastic Package Pendulum Impact Testing Machine, also known as the PIT-01 Pendulum Impact Tester, is an indispensable tool for evaluating the impact strength of various materials, especially plastic sheets used in flexible food packaging. Adhering to ASTM D3420 standards, this tester quantifies the energy required to burst and penetrate the center of a specimen.

Understanding Impact Testing for Plastic Sheets

Impact testing plays a crucial role in assessing the durability and reliability of plastic sheets, particularly in industries like packaging, food, and automotive. By subjecting materials to controlled impacts, we can measure their ability to withstand sudden forces, ensuring they meet stringent quality standards.

Significance of ASTM D3420

ASTM D3420 outlines the standard test method for pendulum impact resistance of plastic film, sheets, and composite materials. This method provides a systematic approach to evaluating materials' performance under impact conditions, offering valuable insights into their structural integrity and suitability for various applications.

ASTM D3420 is a widely recognized standard for determining the impact resistance of plastic films and sheets. It specifies the procedure for conducting pendulum impact tests on these materials, providing guidelines for test setup, specimen preparation, and data analysis. Compliance with ASTM D3420 ensures that impact resistance testing is performed consistently and reliably, allowing for meaningful comparisons between different materials and products.

Product Description

The PIT-01 Pendulum Impact Tester sets the benchmark for precision and reliability in impact resistance testing by ASTM D3420. With its advanced features and user-friendly interface, this testing machine offers efficiency and accuracy in assessing materials' impact strength.

Technical Features

The PIT-01 Pendulum Impact Tester offers a range of features designed to enhance testing precision and efficiency:

1. PLC Control and HMI Touch Screen: Experience industrial-grade stability and intuitive control with our Programmable Logic Controller (PLC) and Human-Machine Interface (HMI).
2. Pneumatic Specimen Clamping: Ensure consistent and reliable clamping for accurate test results, thanks to our pneumatic specimen clamping mechanism.
3. Pendulum Automatic Release: Enhance precision and repeatability with automated pendulum release, essential for reliable impact resistance testing.
4. Data Auto Statistics: Streamline data collection and analysis with our automated statistics feature, simplifying the reporting process.
5. Precise Angle Measurement: Accurately calculate energy absorption during impact tests, thanks to our precise angle measurement capabilities.
6. Microprinter: Instantly generate test reports with our built-in microprinter, enabling swift analysis and decision-making.
7. RS232 Port and Software (Optional): Opt for advanced data management with an optional RS232 port and software, allowing for further analysis and storage of test data on a computer.

Main Parameter

Standards Compliance

The PIT-01 Pendulum Impact Tester adheres to globally recognized standards, including ASTM D3420 and NF T54-116, ensuring that your impact resistance testing meets industry benchmarks for quality and reliability.
