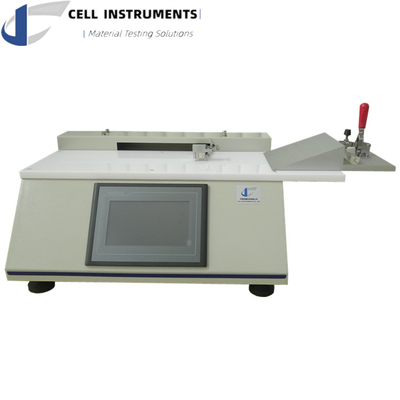

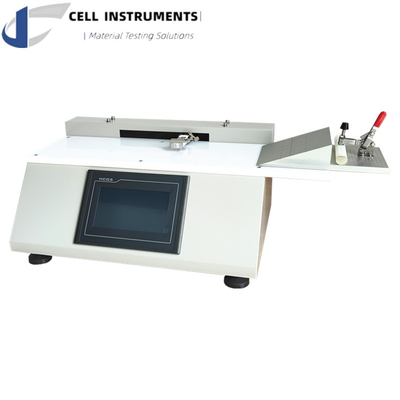

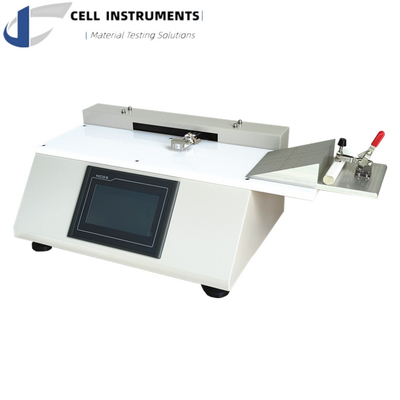

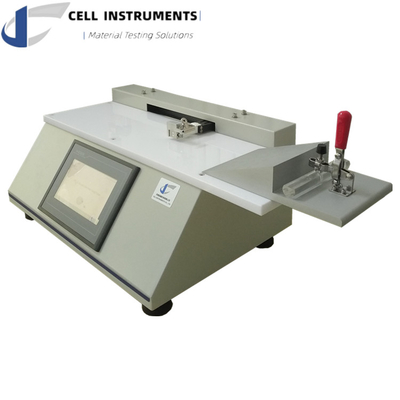

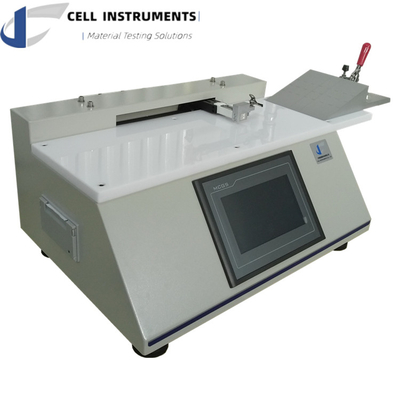

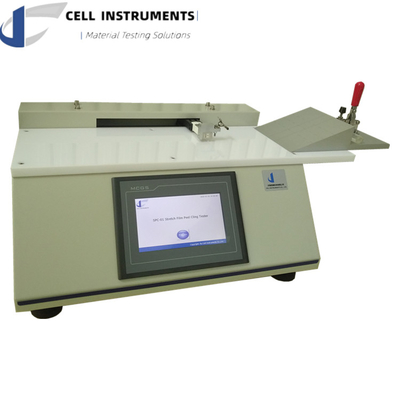

Introduction of SPC-01 Stretch Film Peel Cling Tester

Cell Instruments introduces the SPC-01 Stretch Film Peel Cling Tester, a cutting-edge instrument designed for measuring cling adhesion between two layers of film. This industrial-grade device combines PLC control with an intuitive HMI touch screen interface for precise and stable performance. With advanced technical features and a focus on accuracy, the SPC-01 sets a new standard in the assessment of stretch film peel cling quality.

Technical Features of SPC-01 Stretch Film Peel Cling Tester

The SPC-01 boasts a range of technical features that contribute to its outstanding performance:

1. PLC Control and HMI Touch Screen Operation:
   - The unit is equipped with a 7-inch TFT touch screen, providing a user-friendly human-machine interface (HMI).
   - Industrial-level stability is achieved through precise control with a PLC (Programmable Logic Controller) unit.
2. Precision Ball Lead Screw Mechanism:
   - Ensures accurate and steady speed and displacement control during testing.
3. Adjustable Test Speed:
   - Users have the flexibility to set the test speed according to their specific requirements.
4. Different Load Cell Connections:
   - Eliminates interference caused by friction and gravity, commonly encountered in traditional testing methods using pulleys and strings.
5. Limiting Device and Automatic Returning:
   - Enhanced safety features include a limiting device and automatic return function.
6. Real-Time Display and Peak Value Recording:
   - The 7-inch touch screen provides a real-time display of the test curve, and the instrument records peak values for analysis.
7. Elongation Rates Support:
   - The SPC-01 supports elongation rates of 50%, 100%, and 200%, offering a comprehensive assessment of stretch film properties.
8. Microprinter:
   - An embedded microprinter allows for convenient documentation of test results.
9. Optional Coefficient of Friction Function:
   - Users have the option to add a coefficient of friction function for additional testing capabilities.

Why do you need SPC-01 Stretch Film Peel Cling Tester?

The SPC-01 is an essential tool for industries relying on stretch film for packaging. It offers precise measurement of cling adhesion, providing valuable insights into the quality and performance of stretch wrap materials. Whether in the plastics, paper, textile, food, pharmaceutical, toiletry, printing, or adhesives industries, the SPC-01 ensures that the outer packaging layer securely adheres to the goods, enhancing stability on pallets.

What is the purpose of the SPC-01 Stretch Film Peel Cling Tester?

The primary purpose of the SPC-01 is to assess the peel cling quality of stretch film. By measuring the adhesion strength between two layers of film, the tester determines the material's ability to adhere effectively. This information is crucial for improving the toughness, elasticity, and supporting force of the film, ultimately contributing to the overall quality of packaging.

Application

The SPC-01 Peel Cling Tester is designed to measure cling between two layers of film. This application is critical for various industries where the quality of stretch wrap material adherence is paramount. To conduct the test, two different types of samples are prepared: a larger substrate or backing and a smaller strip peeled from the larger sample. This method effectively evaluates the film's adhesion performance.

Main Parameter

Standards

The SPC-01 Stretch Film Peel Cling Tester adheres to the ASTM D5458 Standard Test Method for Peel Cling of Stretch Wrap. This standard outlines a method for quantifying the adhesion strength between two film layers, providing valuable insights into the material's performance. The test helps identify which of the two layers (external or internal) exhibits stronger or weaker adhesion, contributing to quality control processes in various industries.

The SPC-01 Stretch Film Peel Cling Tester from Cell Instruments stands as a reliable and advanced solution for assessing the adhesion quality of stretch film materials, ensuring enhanced performance and stability in diverse packaging applications.
