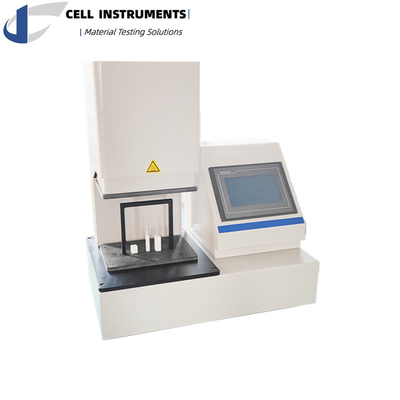

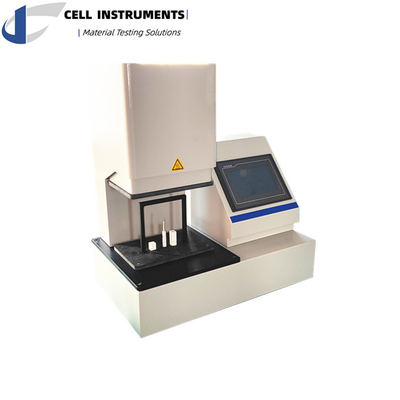

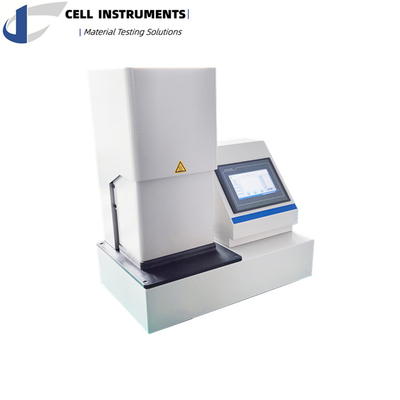

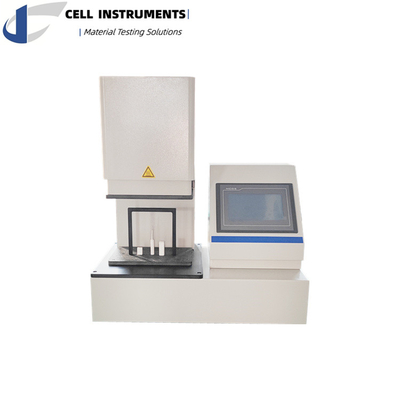

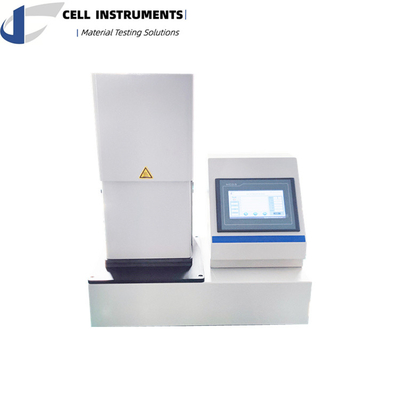

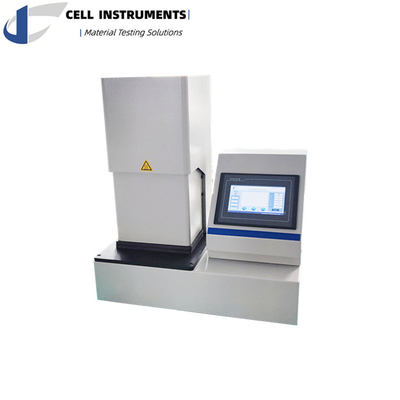

Introduction of FSR-01 Shrink Force and Ratio Tester

The FSR-01 Shrink Force and Ratio Tester is an advanced testing instrument designed and manufactured by Cell Instruments, a leading company committed to the development of testing technology. This specialized device plays a crucial role in the measurement of shrinking forces and shrinkage ratios of heat shrinkable films. Heat shrinkable films, produced through extrusion and stretching, retain their stretched state even after cooling. When reheated to the temperature at which the initial stress was induced during manufacturing, these films undergo a shrinking process, and the FSR-01 is specifically engineered to measure and evaluate this phenomenon.

Advantages of FSR-01 Shrink Force and Ratio Tester

The FSR-01 Shrink Force and Ratio Tester offer several advantages that contribute to its significance in the field of packaging testing instruments:

1. PLC Controlled and HMI Touch Screen Operation: The FSR-01 is a PLC-controlled unit, ensuring industrial-level stability. The Human-Machine Interface (HMI) touch screen operation enhances user convenience and provides a user-friendly experience.
2. Well-Insulated Air Oven: The instrument features a well-insulated air oven that can be automatically lowered and lifted. This design enhances precision during testing processes.
3. Non-Contact Shrink Ratio Measurement: Utilizing a non-contact method for shrink ratio measurement improves accuracy and reliability in the results.
4. Real-Time Display: The FSR-01 provides a real-time display of shrinking force, contracting force, and shrinkage ratio, allowing for immediate analysis and monitoring of the testing process.
5. Elimination of Interference Factors: Irrelevant interference factors like friction and cool air are eliminated, ensuring the accuracy of the test results.
6. Stable Heating System: The FSR-01 incorporates a stable and balanced heating system, maintaining consistent and controlled test conditions.
7. Easy Sample Loading: The instrument is designed for easy sample loading, streamlining the testing process and reducing setup time.
8. High-Resolution Sensors: Equipped with high-resolution force transducers and thermometers, the FSR-01 ensures precise measurements.
9. Connectivity and Software (Optional): Featuring an RS232 port for data connectivity, the FSR-01 offers optional professional software for advanced data analysis and reporting capabilities.

Why do you need FSR-01 Shrink Force and Ratio Tester?

The FSR-01 Shrink Force and Ratio Tester are essential for various industries, including plastics, paper, textile, food, pharmaceutical, toiletry, printing, and adhesives. Here's why you need the FSR-01:

1. Quality Control: The FSR-01 enables precise measurement of shrinking forces and shrinkage ratios, providing crucial data for quality control processes.
2. Product Development: Understanding the performance and characteristics of heat shrinkable films is vital for product development. The FSR-01 assists in optimizing film properties for specific applications.
3. Meeting Specifications: Industries rely on the FSR-01 to ensure that heat shrinkable films meet necessary specifications for their intended applications, enhancing product reliability.

FSR-01 Shrink Force and Ratio Tester Technical Features

The technical features of the FSR-01 Shrink Force and Ratio Tester include:

1. PLC Control and HMI Touch Screen: Ensures industrial-level stability with user-friendly touch screen operation.
2. Well-Insulated Air Oven: Automatic lowering and lifting for enhanced testing precision.
3. Non-Contact Shrink Ratio Measurement: Utilizes a non-contact method for improved accuracy.
4. Real-Time Display: Monitors shrinking force, contracting force, and shrinkage ratio in real-time.
5. Elimination of Interference Factors: Removes factors like friction and cool air for accurate results.
6. Stable Heating System: Maintains consistent and controlled test conditions.
7. Easy Sample Loading: Streamlines the testing process with user-friendly sample loading.
8. High-Resolution Sensors: Equipped with high-precision force transducers and thermometers.
9. Connectivity and Software (Optional): Includes an RS232 port for data connectivity and optional professional software for advanced analysis.

Application

The FSR-01 Shrink Force and Ratio Tester find application in:

1. Research Facilities: Used in enterprises, colleges, universities, and official laboratories for studying heat shrinkable films.
2. Industries: Widely adopted in plastics, paper, textile, food, pharmaceutical, toiletry, printing, and adhesives industries.

​Main Parameter

The FSR-01 Shrink Force and Ratio Tester from Cell Instruments stand out as a technologically advanced and reliable solution for the measurement of shrinking forces and shrinkage ratios in heat shrinkable films. Its technical features, applications, and adherence to industry standards make it an indispensable tool for quality control and product development across various industries.
