xSealing Temp. | Ambient~300℃ | Deviation | ±0.2℃ |
---|---|---|---|
Sealing Time | 0.1S~9999S | Sealing Pressure | 0.15~0.7 MPa |
Seal Jaws | 330*10 Mm L*W | Gas Pressure | 0.7 MPa |
Port Size | Ф6 Mm PU Hose | Power | AC 220V 50Hz |

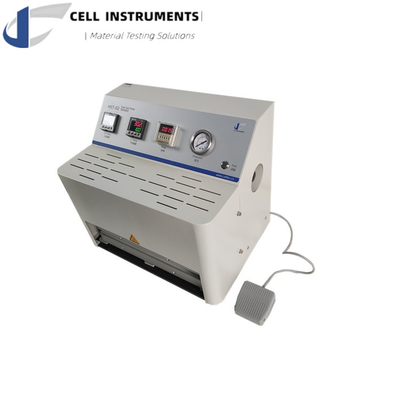

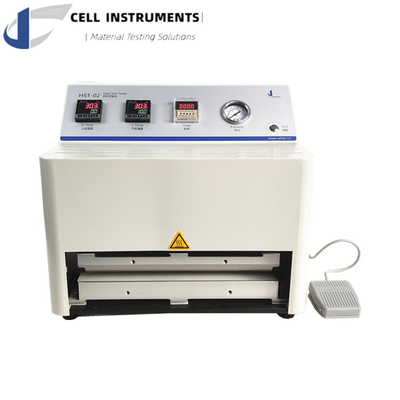

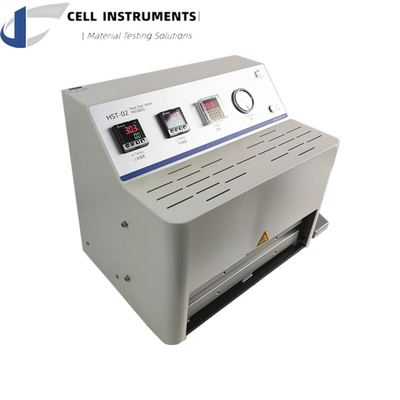

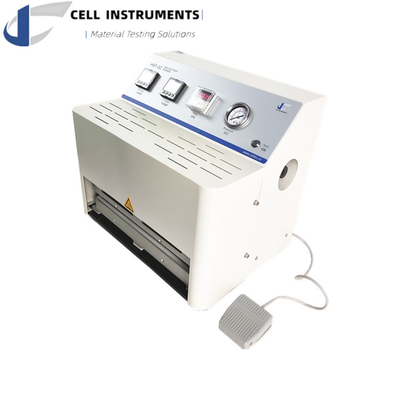

Introduction of HST-02 Heat Seal Tester
The HST-02 Heat Seal Tester by Cell Instruments is a cutting-edge laboratory instrument designed for evaluating the heatsealability of surfaces, sealant layers in films, laminates, composites, and polymers. This compact heat sealer is a crucial tool for industries dealing with thermoplastic materials, providing precise control over key sealing parameters, including time, temperature, and pressure.
Technical Features of HST-02 Heat Seal Tester
The HST-02 boasts advanced features that ensure stability, precision, and efficiency in heat sealing processes. The key technical features include:
- Aluminum Components for Temperature Uniformity:
Both the upper and lower components are crafted from aluminum, minimizing heat loss during sealing and ensuring temperature uniformity. - P.I.D. Temperature Controller:
The top-tier P.I.D. temperature controller guarantees accurate temperature regulation and efficient heating, contributing to reliable and effective sealing outcomes. - Synchronized Timer and Proximity Sensor:
The synchronization of a precise timer and a proximity sensor enables synchronous seal timing with jaw movement, ensuring consistency and repeatability in the testing process. - Three-Way Guided Sealing Bar:
A three-way guided sealing bar maintains consistent sealing pressure, enhancing the quality and reliability of heat seals. - Safety Features:
User safety is a priority, with features such as an anti-scald front cover. Additionally, manual and foot switch initiation options provide flexibility in testing procedures.
Why do you need HST-02 Heat Seal Tester?
The HST-02 Heat Seal Tester is an essential tool for quality control and research purposes in industries dealing with thermoplastic materials. Its precision and stability in controlling time, temperature, and pressure make it indispensable for ensuring the reliability and effectiveness of heat seals.
What is the purpose of the HST-02 Heat Seal Tester?
The primary purpose of the HST-02 Heat Seal Tester is to simulate and evaluate the heatsealability of surfaces, sealant layers, and other components in films, laminates, composites, and polymers. By replicating the sealing process and controlling key parameters, the HST-02 allows users to assess and optimize the quality of heat seals in their products.
Application
The HST-02 Heat Seal Tester finds application in various industries, including plastics, paper, textile, food, pharmaceutical, toiletry, printing, and adhesives. It is suitable for research facilities in enterprises, colleges, universities, and official laboratories.
Main Parameter
HST-02 | |
Sealing Temp. | Ambient~300℃ |
Deviation | ±0.2℃ |
Sealing Time | 0.1S~9999S |
Sealing Pressure | 0.15~0.7 MPa |
Seal Jaws | 330*10 mm L*W |
Gas Pressure | 0.7 MPa |
Port Size | Ф6 mm PU Hose |
Power | AC 220V 50Hz |
Standard
The HST-02 Heat Seal Tester adheres to the ASTM F2029-16(2021) Standard Practices for Making Laboratory Heat Seals for Determination of Heat Sealability of Flexible Barrier Materials as Measured by Seal Strength.
FAQ
- - Q: What industries can benefit from the HST-02 Heat Seal Tester?*
- A: The HST-02 is suitable for industries working with thermoplastic materials, including plastics, paper, textile, food, pharmaceutical, toiletry, printing, and adhesives. - - Q: How does the HST-02 ensure safety during testing?*
- A: The HST-02 includes safety features such as an anti-scald front cover. Users can also initiate testing using manual or foot switch options. - - Q: What parameters does the HST-02 control for effective heat sealing?*
- A: The HST-02 allows precise control over time, temperature, and pressure, ensuring the reproducibility and reliability of heat seals.
The HST-02 Heat Seal Tester from Cell Instruments is a state-of-the-art instrument that plays a crucial role in quality assurance and research activities related to heatsealability in various industries. Its technical features, specifications, and adherence to standards make it a reliable and efficient tool for assessing and optimizing heat seals in thermoplastic materials.
