Thickness Measuring System For Plastic Sheet And Paper ISO 534 Stable Paper And Board Contact Thickness Tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTest Range | 0~2mm(Customization Available) | Resolution | 0.1 μm |
---|---|---|---|
Standard Measure Head | Hemispherical Type | Optional Measure Head (flat Foot) | 50 Mm² , 17.5±1 KPa (for Film)/200 Mm² , 50±1 KPa (for Paper) |
Power | AC 110~220V |

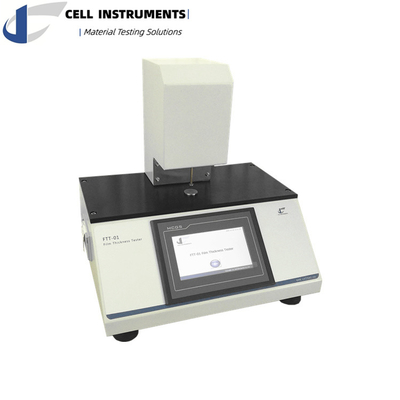

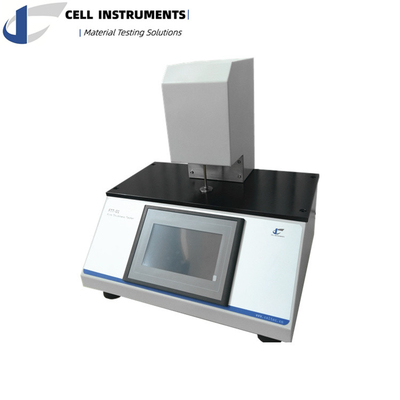

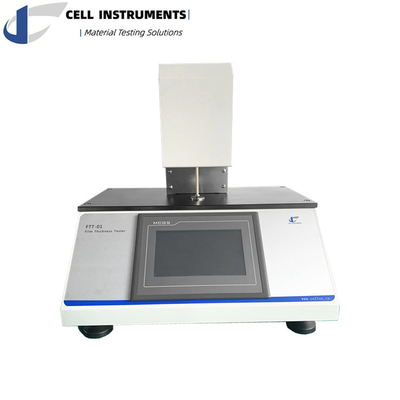

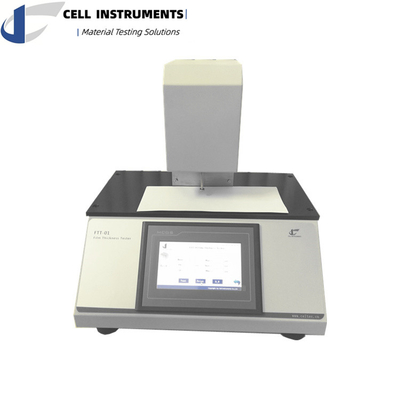

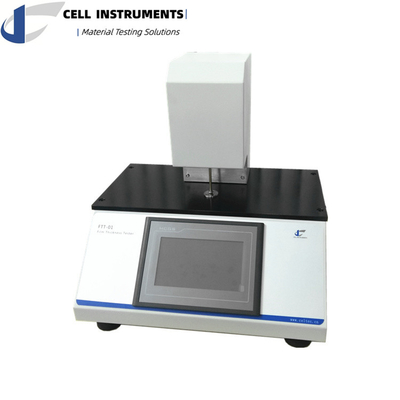

Introduction of FTT-01 Thickness Tester
The FTT-01 Thickness Tester from Cell Instruments represents a cutting-edge solution for precise and reliable measurement of plastic film thickness. This industrially stable unit is controlled by a Programmable Logic Controller (PLC) and operated through an intuitive Human-Machine Interface (HMI) touch screen, ensuring ease of use and accuracy in thickness measurement. This advanced instrument employs a mechanical scanning method to measure the thickness of various materials, including plastic films, sheets, fabrics, textiles, membranes, paper, foil, wafers, and more.
Advantages of FTT-01 Thickness Tester
The FTT-01 Thickness Tester offers numerous advantages that make it a valuable asset in quality control and material assessment:
- PLC Control and HMI Touch Screen Operation: The instrument is equipped with a PLC control system, providing industrial-level stability. The HMI touch screen allows for user-friendly and efficient operation.
- Automatic Presser Foot Lifting: The FTT-01 features an automatic presser foot lifting mechanism, streamlining the testing process and ensuring consistent and accurate measurements.
- Real-time Display: The instrument provides a real-time display of maximum, minimum, average, and standard deviation measurements, allowing for instant analysis and quality control.
- Test Result Storage and Micro Printing: With the capability to store test results, the FTT-01 facilitates record-keeping and traceability. Micro printing further enhances documentation.
- Optional RS232 Port and Software: The inclusion of an RS232 port allows for connectivity with optional software, offering additional data analysis and reporting capabilities.
- Sample Feeding Options: The instrument accommodates both manual and automatic sample feeding, providing flexibility based on user preferences and testing requirements.
Why do you need FTT-01 Thickness Tester?
- Product Quality Assurance: Ensures consistent film thickness, preventing defects such as uneven appearance, poor performance, or reduced durability.
- Cost Control: Optimizes material usage, reducing production costs associated with excessive material consumption.
- Regulatory Compliance: Meets industry standards, particularly in sectors like food packaging and medical devices, ensuring compliance with thickness requirements for safety and performance.
- Process Optimization: Acts as an indicator of a well-controlled manufacturing process, allowing for the identification and correction of deviations or equipment issues.
- Material Efficiency: Optimizes thickness to ensure efficient use of material resources, reducing waste.
- Customer Satisfaction: Meets customer expectations for specific product dimensions and performance characteristics, enhancing satisfaction and fostering repeat business.
What is the purpose of the FTT-01 Thickness Tester?
- Ensuring product quality and consistency.
- Facilitating cost control through material optimization.
- Guaranteeing regulatory compliance in industries with strict standards.
- Enabling process control and optimization.
- Enhancing material efficiency and reducing waste.
- Meeting customer expectations for specific product dimensions and performance characteristics.
Application
The FTT-01 Thickness Tester employs a mechanical scanning method to measure the thickness of a diverse range of materials, including:
- Plastic films
- Sheets
- Fabrics
- Textiles
- Membranes
- Paper
- Foil
- Wafers
Specifications
Main Parameter | |
Test Range | 0~2mm(Customization available) |
Resolution | 0.1 μm |
Standard Measure Head | Hemispherical type |
Optional Measure Head (flat foot) | 50 mm² , 17.5±1 KPa (for film) 200 mm² , 50±1 KPa (for paper) |
Power | AC 110~220V |
Standards
The FTT-01 Thickness Tester complies with various international standards, ensuring accuracy and reliability in thickness measurements. Some of the standards include:
- ASTM D374-99: Standard Test Methods for Thickness of Solid Electrical Insulation
- ASTM D1777: Standard Test Method for Thickness of Textile Materials
- ISO 3034:2011: Corrugated fiberboard-Determination of single sheet thickness
- ISO 534-2011: Paper and board-Determination of thickness, density, and specific volume
- ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning
Technical Feature
The FTT-01 Thickness Tester features a robust configuration with key technical features:
- Controlled by a PLC and operated through an HMI touch screen.
- Automatic presser foot lifting for convenience and consistency.
- Real-time display of maximum, minimum, average, and standard deviation measurements.
- Test result storage and micro printing capabilities.
- Optional RS232 port with software compatibility.
- Both manual sample feeding and automatic feeding options are available.
The FTT-01 Thickness Tester is a state-of-the-art instrument that ensures precise thickness measurements, contributing to product quality, cost efficiency, regulatory compliance, and overall process control across various industries.
