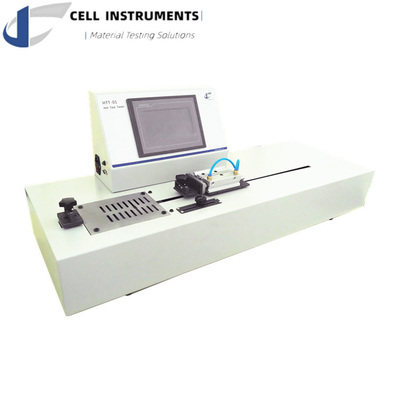

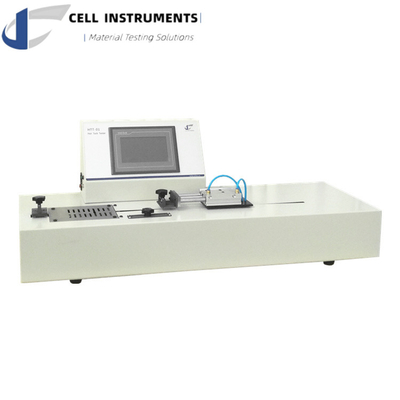

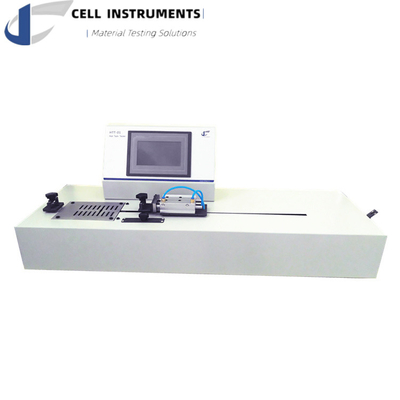

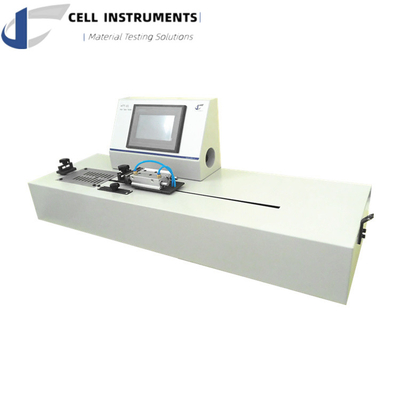

Introduction of HTT-01 Hot Tack Tester

Cell Instruments takes pride in introducing the HTT-01 Hot Tack and Tensile Tester, a cutting-edge solution designed for assessing the hot tack strength of heat-sealed layers. This versatile instrument plays a crucial role in various industries, including plastics, paper, textile, food, pharmaceuticals, toiletries, printing, and adhesives. The HTT-01 not only evaluates the immediate strength of heat seals but also functions as a horizontal tensile and peeling force tester, ensuring the reliability and integrity of seals in diverse applications.

Technical Features of HTT-01 Hot Tack Tester

1. PLC Controlled Industrial Stability

   The HTT-01 Hot Tack Tester is equipped with a PLC (Programmable Logic Controller) for industrial-level stability. This ensures precise control and reliable performance, contributing to the instrument's overall efficiency.

2. HMI Touch Screen Interface

   Operability is enhanced with an intuitive HMI (Human-Machine Interface) touch screen. This user-friendly interface allows for easy navigation and efficient control, making the testing process smooth and accessible.

3. Versatile Functionality

   The HTT-01 stands out as a multifunctional device, seamlessly combining hot tack, tensile, and peeling tests in a single unit. This versatility makes it a comprehensive solution for various testing needs within the packaging and industrial sectors.

4. Temperature Control Precision

   Temperature control is paramount in hot tack testing. The HTT-01 utilizes a Delta P.I.D. temperature controller and PT100 temperature sensor to ensure accuracy and consistency in maintaining the desired temperature during the testing process.

5. Durable Sealing Jaws

   The instrument is equipped with durable aluminum encapsulated sealing jaws, designed to provide consistent heating. These sealing jaws are Teflon-coated and measure 50mm x 10mm, ensuring reliable and uniform sealing across different materials.

6. Adjustable Testing Speed

   Flexibility is key, and the HTT-01 offers an adjustable testing speed ranging from 1 to 2000 mm/min. This feature allows users to tailor the testing conditions according to specific requirements, ensuring accurate and relevant results.

7. Safety Features

   To guarantee a secure testing environment, the HTT-01 includes essential safety features such as auto zeroing, overload protection, and over-travel protection. These features contribute to the longevity of the instrument and prevent potential damage during operation.

8. Optional RS 232 Port and Professional Software

   For advanced data management, the HTT-01 can be equipped with an optional RS 232 port and professional software. This facilitates enhanced data handling, providing users with comprehensive insights into the testing outcomes.

Why do you need HTT-01 Hot Tack Tester?

In industries where packaging plays a pivotal role, ensuring the integrity of heat-sealed layers is of utmost importance. The HTT-01 Hot Tack Tester addresses this need by offering a comprehensive solution for assessing the hot tack strength immediately after sealing. The instrument's multifunctionality, precision, and safety features make it an indispensable tool for quality control in packaging processes.

What is the purpose of the HTT-01 Hot Tack Tester?

The primary purpose of the HTT-01 Hot Tack Tester is to evaluate the hot tack strength of heat-sealed layers. This is particularly critical in vertical form-fill-seal (VFFS) processes, where limited cooling time demands robust hot tack force to prevent seal failure. Additionally, the HTT-01 serves as a horizontal tensile and peeling force tester, ensuring the overall reliability and integrity of seals across various materials.

Application

Hot Tack in Vertical Form-Fill-Seal (VFFS) Packaging

The HTT-01 Hot Tack Tester finds its primary application in VFFS packaging. With contents introduced immediately after sealing and often involving substantial weights, a strong hot tack force is essential. The instrument ensures the maintenance of seal integrity, mitigating the risk of spills or package failures.

Main Parameter

Standard

The HTT-01 Hot Tack and Tensile Tester adhere to industry standards, ensuring the reliability and reproducibility of test results. The instrument complies with:

• ASTM F1921: Standard Test Methods for Hot Seal Strength (Hot Tack) of Thermoplastic Polymers and Blends Comprising the Sealing Surfaces of Flexible Webs.
• ASTM F2029: Standard Practices for Making Heatseals for Determination of Heatsealability of Flexible Webs as Measured by Seal Strength.
