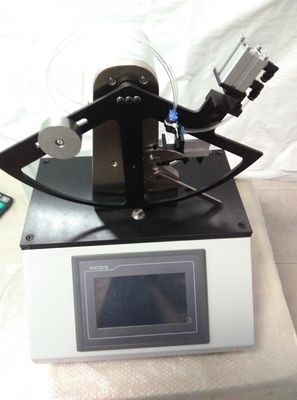

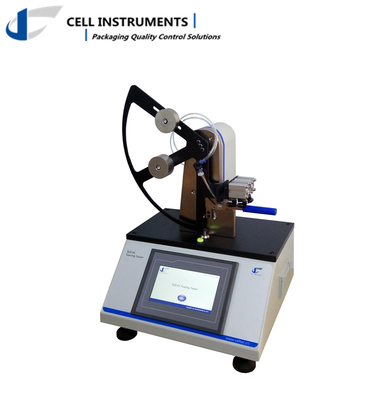

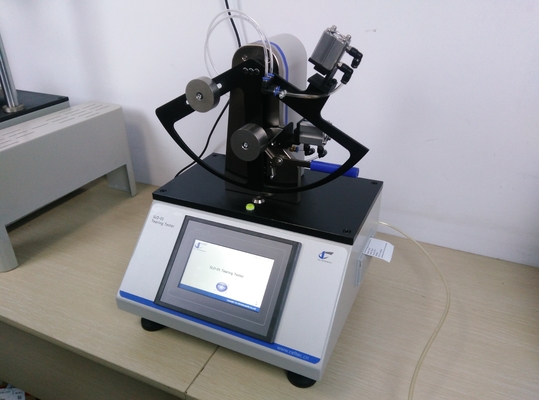

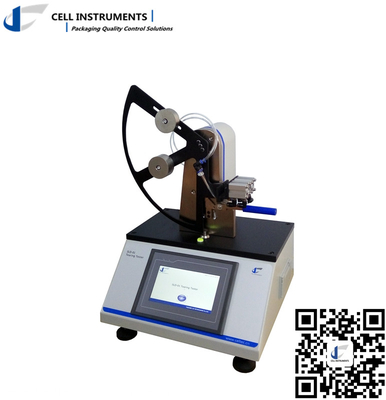

Elmendorf Tearing Tester for Film

Elmendorf Tearing Tester for Film is used to determinate tearing resistance property of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.

Standards: ASTM D1922, ASTM D1424, ASTM D689, ISO 6383, ISO 1974, GB/T16578.2-2009, GB/T 455, TAPPI T414

Elmendorf Tearing Tester for Film Features

1.     PLC control and touch screen operation

2.     Contact area and pressure are standards conformed.

3.     Pneumatic specimen clamping and pendulum automatic release

4.     Data auto statistics, storage and micro printing

5.     RS232 port and software (Optional)

Technical data

Pendulum Capacity                      200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf

Gas Source                                     0.6 MPa

Tearing Arm                                   104±1mm

Tearing Initial Angle                      27.5 ±0.5°

Power                                            AC 220V 50Hz (Customization available)
