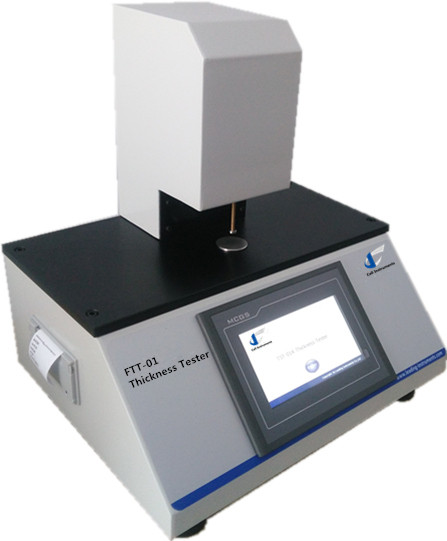

Mechanical scanning thickness tester Contacting method thickness tester

Mechanical scanning thickness  tester is used to measure the thickness of plastic films, sheets, board, fabrics, textile, membranes, paper, foil, wafers and other materials.

Summary of test method

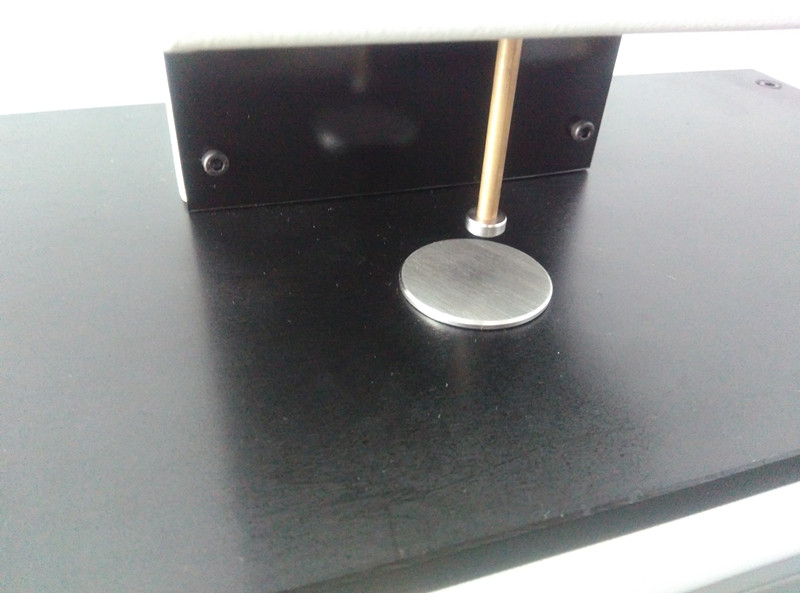

A specimen is placed on  base and a weighted presser foot lowers. The displacement between the base and the presser foot is measured as the thickness of the specimen.

Mechanical scanning thickness tester features

1.         PLC control and touch screen operation

2.         Contact area and pressure are standards conformed.

3.         Presser foot automatic lifting

4.         Real time display of maximum, minimum, average and standard deviation

5.         Data auto statistics, storage and micro printing

6.         RS232 port and software (Optional)

Mechanical scanning thickness tester technical data

Test Range       0~2mm(Customization available)

Resolution        0.1 μm

Measuring pressure           17.5±1 KPa (for film); 50±1 KPa (for paper, optional)(flat foot)

Contact area             50 mm2 (for film); 200 mm2 (for paper, optional)(flat foot)

Power     AC 220V 50Hz (Customization available)

Dimensions      450mm(L)*350mm(W)*400mm(H)

It complies with the following standards:

ASTM D374 - 99: Standard Test Methods for Thickness of Solid Electrical Insulation

ASTM D1777: Standard Test Method for Thickness of Textile Materials

ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning

ISO 534-2011: Paper and board -- Determination of thickness, density and specific volume

ISO 3034:2011: Corrugated fibreboard -- Determination of single sheet thickness

TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
