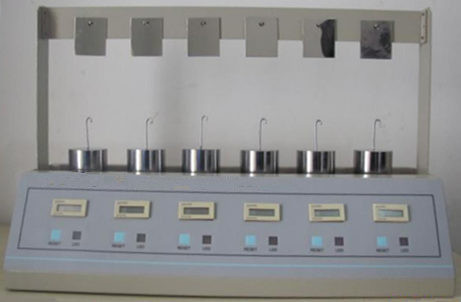

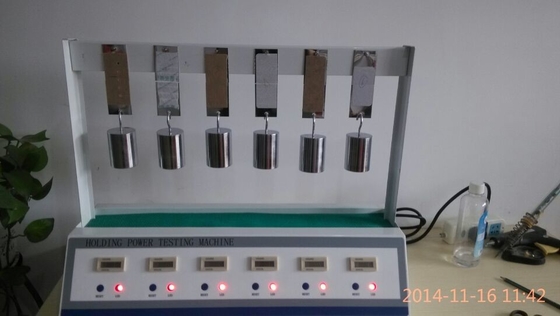

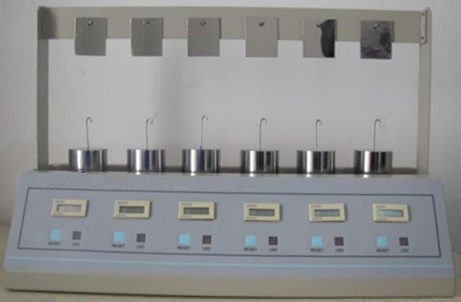

ASTM D3654 holding power tester

ASTM D3654 holding power tester measures the lasting adhesive of pressure sensitive adhesive tapes, labels and other interrelated products.

Standard: ASTM D3654 Test Method for Holding Power of Pressure-Sensitive Tapes

Principle:

The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property could be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at the load.

ASTM D3654 holding power tester features

1. Standard test plates and weights
2. Six testing stations
3. Auto-timing, locking and reminding
4. Microcomputer control
5. LCD display

ASTM D3654 holding power tester parameters

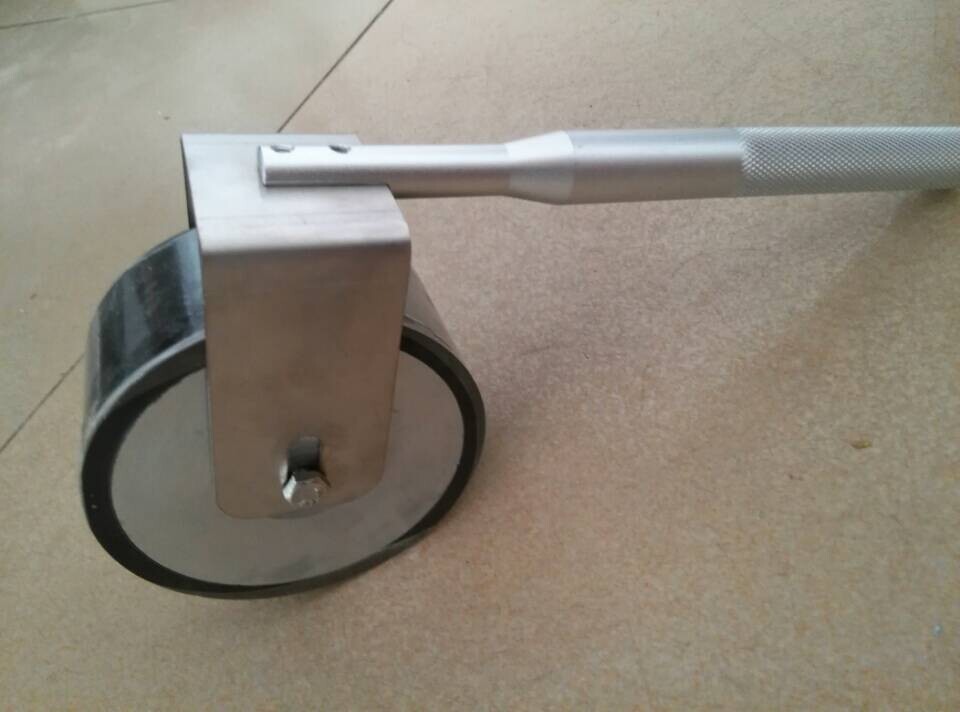

Standard Roller                  2000 g ±100 g

Weight                            1000 g ±10 g

Test Plate                        60 mm (L) x 40 mm (W) x 1.5 mm (D)

Timing Range              0 ~ 9999 h

Number of Stations         6

Instrument Dimension          600 mm (L) x 240 mm (W) x 400 mm (H)

Power Supply              AC 220V 50Hz

Net Weight                     20 kg
