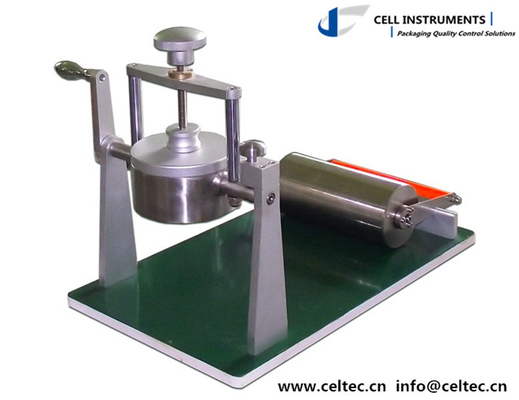

Paper water absorptiveness tester COBB tester with blotting paper 10Kg roller COBB testing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | Electronic | Usage: | Paper Testing Instrument |
|---|
Paper water absorptiveness tester measures the surface water absorption of paper and paper board. Loose paper, e.g. newsprint, unsized paper, e.g. blotter and other high absorbability paper is not for this tester.
Paper water absorptiveness tester principle
The Cobb value of surface water absorption of paper and paperboard.:
The calculated mass of water absorbed in a specified time by a unit area of paper or board under specified pressure and temperature conditions. It is expressed in g/㎡.
C=(G2-G1)×100.
C-water absorptiveness
G2-wet mass, in grams, of the test piece
G1-dry mass, in grams, of the test piece
When Cobb value is less than 200～250 g/㎡ for single layer, more layers can used.
Paper water absorptiveness tester technical data
| Metal roller sectional area | 100±0.2㎝2 |
| Metal roller diameter | 112.8±0.2mm |
| Roll height | 50mm |
| Blotting paper | 200～250g/㎡ |
| Absorption speed | 75mm/10min |
| Smooth metal roller | length 200±0.5mm,mass10±0.5kg. |
| Water volume | 100mm±5ml. |
|
Dimension |
480×400×420(mm) |
Standard
ISO 535,GB/T 1540,QB/T 1668
