Motorised Torque Strength Tester

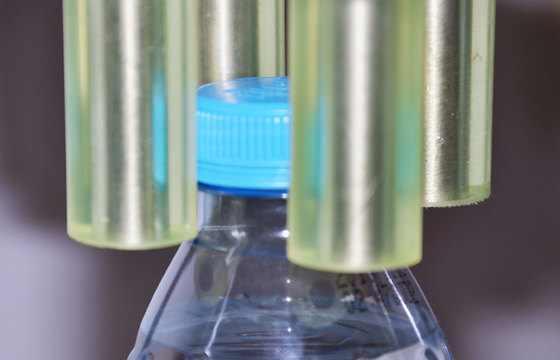

Motorized Torque Strength Tester is for the locking and opening force test of bottle caps and can be operated in clockwise and counter-clockwise directions.

Motorized Torque Strength Tester Features

1. PLC control unit and touch screen operation
2. Both locking and opening force can be measured
3. Static and rotatory torque measuring up to 10 N.m.
4. Test parameter and data storage
5. Automatic rotating
6. Micro-printer
7. RS232 port and professional software

Motorized Torque Strength Tester Technical Data

Test Range: 10 Nm

Accuracy: 1% FS

Clamp Range: 15mm-140mm

Speed Range: 0.01～15RPM

Dimension: 340×430×750 mm

Standards:

ASTM D2063, ASTM D3198, ASTM D3474, DIN EN 12377
