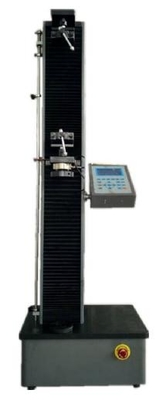

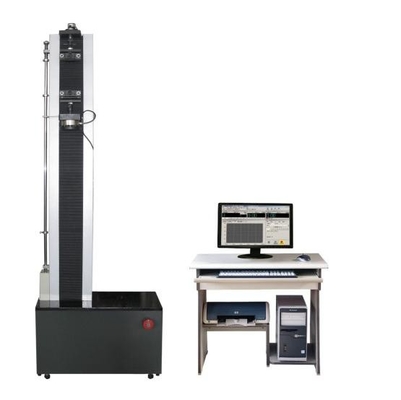

Plastic material tensile testing machine

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number TCT-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Usage Tensile Testing Machine
Leave a Message
Product Description

Plastic material tensile testing machine is applicable in the tensile and compression test of rubber, plastics, textile, waterproof material, cable, nettle, metal wire, metal bar and metal plate, etc. Multiple functions of test force display, adjustable test speed, auto stop at breaking and peak value holding, etc, are also available.

Plastic material tensile testing machine features:

1. High precision digital speed regulating system and precision lead-screw

2. Easy sample loading.

3. Dual test movement of tension and compression.

3. Key operation and LCD real time display.

4. overcurrent, overvoltage and overload protection

5. Computer connection available (optional)

6. Micro printer(optional)



Plastic material tensile testing machine technical data

Max Test Force                   200N (or as required, up to 5KN)

Force Accuracy                   Better than ±1%

Displacement Resolution           0.01mm

Tensile Stroke                    600mm or 1000mm (optional)

Compression Stroke               600mm or 1000mm (optional)

Stroke                          600mm or 1000mm (optional)

Displacement Speed Control Range    1mm/min~500mm/min(normal)

Dimension                     530*266*1450 or 1810 mm

Power                           220V, 50 Hz

Plastic material tensile testing machine 0
