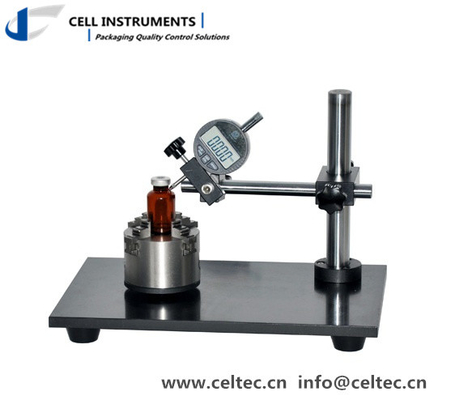

Medical bottle perpendicularity tester Coaxiality tester

Medical bottle perpendicularity tester measures the coaxial deviation of ampoule bottle and penicillin bottle. It is essential model for pharmaceutical companies and testing institutions. It's based on YBB00192003.

Medical bottle perpendicularity tester principle

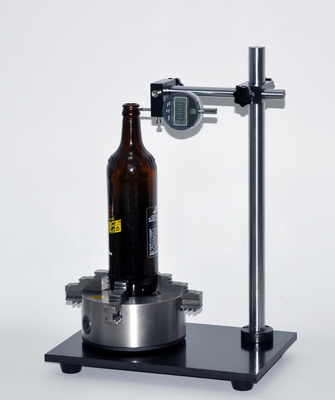

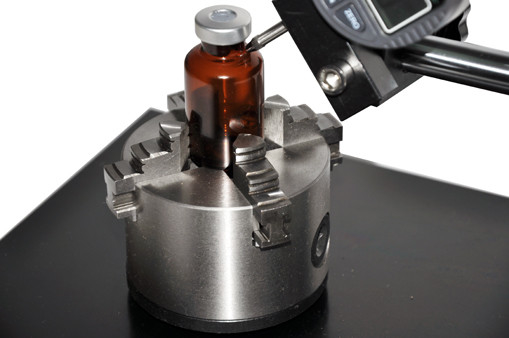

The bottle is fixed on a rotating plate and the bottle mouth is contacting with dial gauge. Record the maximum and minimum reading after rotating a full circle of  360 °. The 1/2 of the difference between the two is the vertical axis deviation value.

Medical bottle perpendicularity tester technical data

Sample Diameter: 5mm-80mm (customization available)

Test Range: 0-12.7mm (customization available)

Division value: 0.001mm

Measurable Height: 15mm-150mm (customization available)

Dimension: 330mm(L)*220mm(W)*230mm(H)

Weight: 12Kg

Medical bottle perpendicularity tester standard

YBB00332002, YBB00192003, GB 8452, GB 2639

Configuration

mainframe, digital measuring head
