Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine

China Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine supplier
Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine supplier Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine supplier Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine supplier Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine supplier Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine supplier

Large Image :  Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine

Product Details:

Place of Origin: China
Brand Name: Cell Instruments
Model Number: BST-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: export carton
Delivery Time: 7 days
Payment Terms: TT LC
Supply Ability: 100 sets/m
Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description

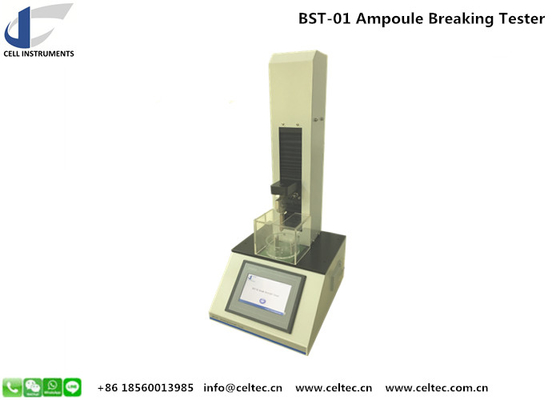

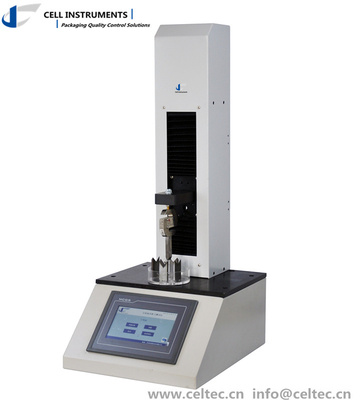

Model: BST-01 Brand: CELL INSTRUMENTS
Test Range: 200N Control: PLC And Touch Screen

mpoule Breaking Strength Tester can be used to have the quantitative test of ampoule breaking strength. Ampoules are commonly used to contain pharmaceuticals and they are hermetically sealed by melting the thin top with an open flame, and usually opened by snapping off the neck.



The proper breaking force of the neck is crucial for both the pharmaceutical safety and clinical application.



Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine



Breaking Strength Tester Principle

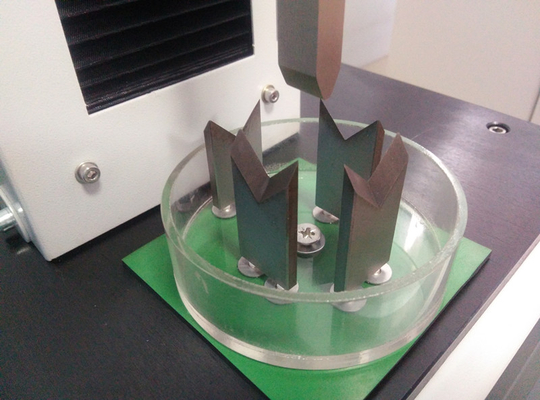

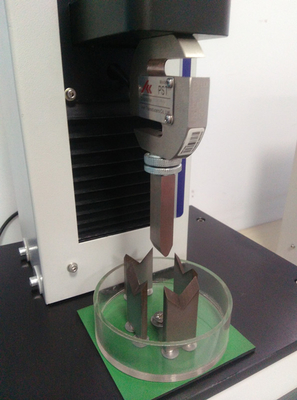

An ampoule sample is place on the fixtures and the pressing head is driven down by the power system at the speed of 10 mm/m. The breaking strength is detected by the high precision load cell when the pressing head touches the ampoule neck and breaks it.7 inch TFT touch screen makes parameter setting and test operation easy and convenient.



Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine

  1. PLC programmable logic controller realizes precise control of the driving system and the overall performance of the instrument.
  2. Precision ball screw for accurate speed and displacement.
  3. Test speed is adjustable.
  4. Tensile and compression tests are available.

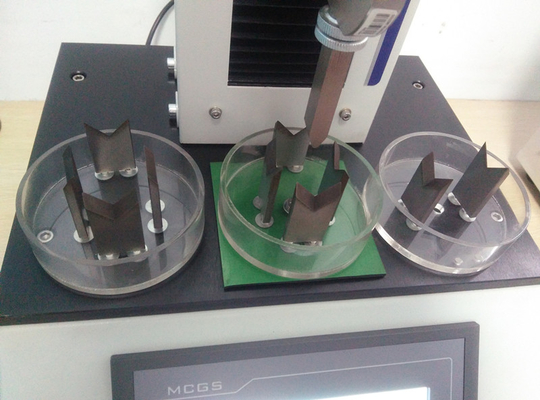

  5. Multiple fixtures available for other types of pulling and compression tests.
  6. Limiting device and automatic returning function ensure safe operation.
  7. Protective cover

Ampoule Breaking Strength Tester Technical Specifications

Test Range 0-200N (Standard)

Speed 10 mm/m (This speed is for ampoule breaking and other speeds available)

Dimension 400mm (L) ×340mm (W) ×800mm (H)

Power AC 220V 50Hz

Test Range

0-200N (Standard)

Speed

10 mm/m ( other speeds available)

Dimension

400mm (L) ×340mm (W) ×800mm (H)
Power  110~220V



Ampoule Breaking Strength Tester Standard

GB 2637,YBB00332002



Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine



Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine

Ampoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing MachineAmpoule Breaking Strength Tester Ampoule Bottle Neck Breaking Force Tester Compression Testing Machine
