Hot Tack Tester ASTM F1921 ASTM F2029 heat tack sealing tester

I'm Online Chat Now

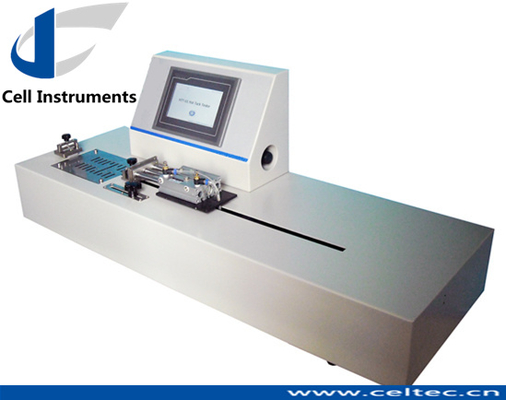

Hot Tack Tester ASTM F1921 ASTM F2029 heat tack sealing tester

China Hot Tack  Tester ASTM F1921 ASTM F2029 heat tack sealing tester supplier
Hot Tack  Tester ASTM F1921 ASTM F2029 heat tack sealing tester supplier Hot Tack  Tester ASTM F1921 ASTM F2029 heat tack sealing tester supplier Hot Tack  Tester ASTM F1921 ASTM F2029 heat tack sealing tester supplier

Large Image :  Hot Tack Tester ASTM F1921 ASTM F2029 heat tack sealing tester

Product Details:

Place of Origin: China
Brand Name: Cell Instruments
Model Number: HTT-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: export carton
Delivery Time: 7 days
Payment Terms: TT LC
Supply Ability: 999sets
Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description
High Light:

peel

,

ASTM F2029

,

ASTM F1921

Hot Tack Tester measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature.

Hot Tack  Tester ASTM F1921 ASTM F2029 heat tack sealing tester



Hot Tack Tester Features

  1. Hot tack, heat seal, peeling and tensile test items are integrated in one instrument
  2. Sealing jaws are controlled by P.I.D. temperature. Temperature rises fast to set temp and keeps stable
  3. 7 inch TFT touching screen for easy operation
  4. PLC control
  5. Aluminum encapsulated sealing jaws for average heating
  6. Multi-group parameter saving
  7. Any testing speed adjustable
  8. Auto zeroing, overload and over travel protection
  9. Manual and foot switch starting test, anti-scald design
  10. RS 232 port and professional software

Hot Tack Tester Technical Specifications

Items

Parameters

Sealing Temperature

Ambient~250℃

Temp Accuracy

±0.2℃

Heat Seal Dwell Time

0.1~9999s

Hot Tack Dwell Time

0.1~9999s

Sealing Pressure

0.05MPa~0.7MPa

Sealing Jaws

50mmx10mm Teflon Coated

Sealing Jaws Heating

Double Heating

Load Cell

200N Optional:30N50N100N500N)

Accuracy

0.5 F.S.

Resolution

0.01N

Stroke

500mm

Gas Source

0.5MPa~0.7MPa

Port Size

Ф6mm PU Hose

Dimensions

1100mm(L)×390mm(W)×420(H)

Power

AC220V50Hz

Hot Tack  Tester ASTM F1921 ASTM F2029 heat tack sealing tester

Hot Tack Tester Standards

ASTM F1921, ASTM F2029, QB/T2358, YBB 00122003
