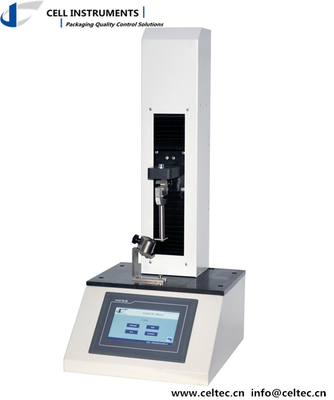

Medical Package Testing Machine Applications:
Penetration Test of Rubber Stoppers in Antibiotic Bottles and Hypodermic Needles, Fracture Strength Test of Ampoule Bottles, Leak Test of Plastic Packages under External Pressure, Connection Force Test between Hypodermic Needle and Needle Hub, Connection Force Test between Hypodermic Needle and Needle Cap, Sliding Resistance Test of Pistons, Leak Test of Plastic Packages
Medical Package Testing Machine Features
1. 7 inch TFT touch screen makes parameter setting and test operation easy and convenient.
2. PLC programmable logic controller realizes precise control of the driving system and the overall performance of the instrument.
3. Precision ball screw for accurate speed and displacement.
4. Test speed is adjustable.
5. Tensile and compression tests are available.
6. Multiple fixtures available for other types of pulling and compression tests.
7. Limiting device and automatic returning function ensure safe operation.
Test Range 0-200N (Standard)
Speed 10 mm/m (This speed is for ampoule breaking and other speeds available)
Dimension 400mm (L) ×340mm (W) ×800mm (H)
