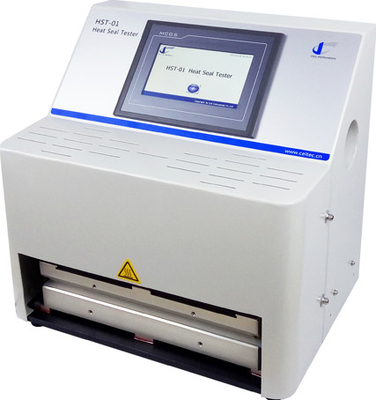

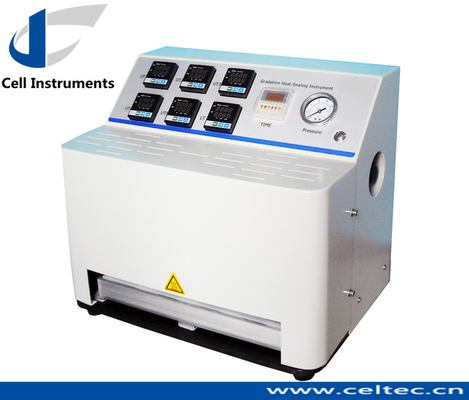

Five Point Heat Sealer

Five Point Heat Sealeris professionally designed for the precise measurement of sealing temperature, time and pressure. Protection Film Heat Seal Tester is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc. How well the material heatseals is expressed quantitatively as seal strength as a function of the sealing conditions of temperature, time and pressure. It conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.

Five Point Heat SealerFeatures

1. 7 inch TFT touching screen

2. PLC control

3. P.I.D. temperature control

4. Uniform heating by aluminum encapsulated sealing jaws

5. Multiple groups of test parameters can be saved

6. Independent heating of upper and lower sealing jaws

7. Sealing jaw customization available

Technical data

temperature Room Temperature ~ 300℃

Deviation ±0.2℃

Dwell time 0.1 s~9999s

Sealing pressure 0.15 MPa ~ 0.7 MPa

Sealing Jaws 330mm×10mm(Sealing Surface)(Customization Available)

Double Heating of Upper and Lower Jaws
