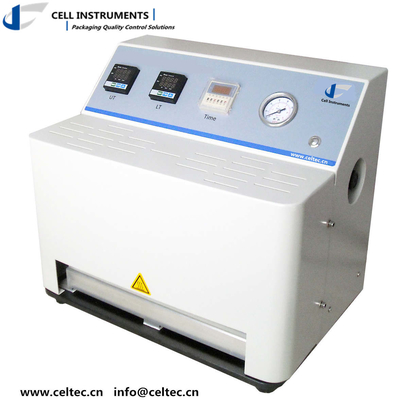

Seal Tester Polymer heat sealing test machine

Polymer heat sealing test machine is professionally designed for the precise measurement of sealing temperature, time and pressure. Polymer heat sealing test machine helps to determine heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc.

It conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.

Polymer heat sealing test machine Features

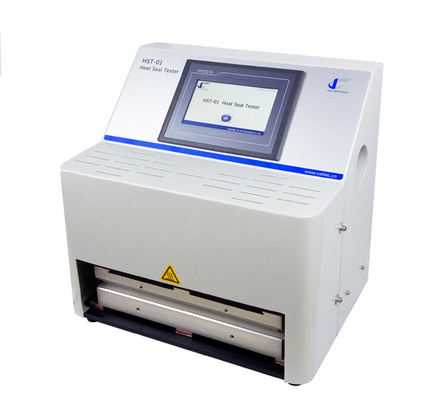

1. 7 inch TFT touching screen operation

2. PLC for precise dwell time and sealing pressure control

3. P.I.D. for precise sealing temperature control

4. No inhomogeneous heating

5. Program customization available.

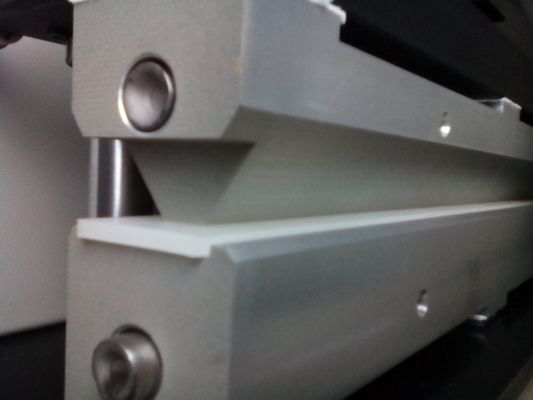

6. Independent heating of upper and lower sealing jaws

7. Sealing jaw customization available

8. Possible to connect to PC(optional software)

Polymer heat sealing test machine technical specifications

Sealing temperature Room Temperature ~ 300℃

Deviation ±0.2℃

Dwell time 0.1 s~9999s

Sealing pressure 0.15 MPa ~ 0.7 MPa

Sealing Jaws 330mm×10mm(Sealing Surface)(Customization Available)

Double Heating of Upper and Lower Jaws

Gas Pressure 0.5 MPa~0.7 MPa of Air

Dimensions 455mm (L) *320mm (W) *440mm (H)

Port Size Ф6 mm PU Hose

Power AC 220V 50Hz

Standard

ASTM F2029, QB/T 2358, YBB 00122003
