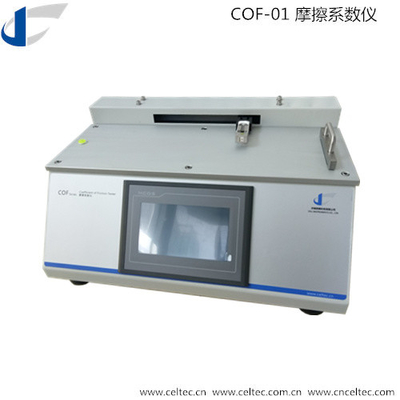

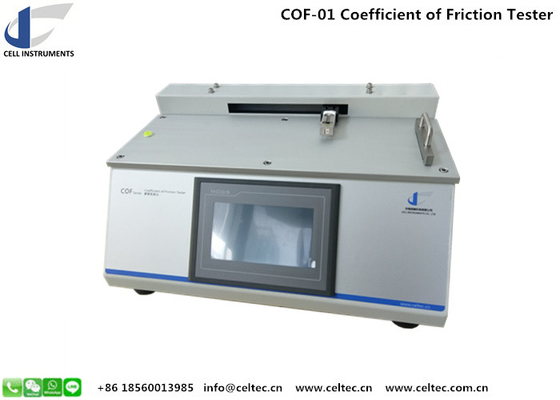

Static and kinetic COF Tester|Both ASTM D1894 and ISO 8295 Conformed|Coefficient of Friction Tester

Static and kinetic COF Tester|Both ASTM D1894 and ISO 8295 Conformed|Coefficient of Friction Tester working principle

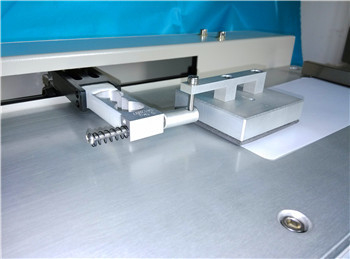

The two samples are placed together. A long strip sample is fixed on the flat surface and another squared sample is applied force by a sled. The friction force is measured when they slip against each other.

Static and kinetic COF Tester​ Features

1. PLC control and human machine interface
2. Real time display of test data, results and curves
3. Both the static and kinetic coefficient of friction can be measured
4. In accordance with multiple international standards
5. Test results calculation, analysis and curve superposition
6. RS232 output and professional software
7. Microprint of easy printing of test result

Static and kinetic COF Tester​ Technical Specification

Load Cell 5N

Accuracy ±0.02 N

Stroke Max 150mm

Sled 200 g (Customization for other weight)

Test Speed 100mm/min (ISO), 150mm/min(ASTM)

Power AC 220V 50Hz (can be changed to local requirement)

Dimensions 400mm(L)*300mm(W)*180mm(H)
