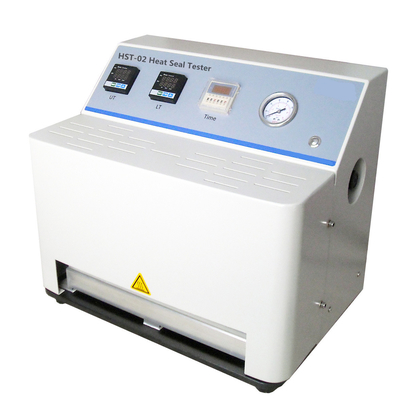

Polymer heatsealability Tester|Heat seal parameters | ASTM F2029 flexible web heat seal tester

Polymer heatsealability Tester|Heat seal parameters tester|ASTM F2029 flexible web heat seal tester evaluates the heatsealability of a surface, sealant layer of films, laminates, composites and polymers etc.

The heatsealability is expressed quantitatively in temperature, time and pressure.

Polymer heatsealability Tester Features

1. 7 inch HMI touch screen

2. PLC for precise dwell time and sealing pressure control

3. P.I.D. for precise sealing temperature control

4. Aluminum encapsulated uniform and parallel heating jaw

5. Multiple groups of test parameters can be saved to reduce setting time and eliminate human error

6. Independent heating of upper and lower sealing jaws

7. Sealing jaw customization available in term of dimension, shape and surface

8. Software is optional

Polymer heatsealability Tester​ Technical specifications

Sealing temperature Room Temperature ~ 300℃

Deviation ±0.2℃

Dwell time 0.1 s~9999s

Sealing pressure 0.15 MPa ~ 0.7 MPa

Sealing Jaws 330mm×10mm(Sealing Surface)(Customization Available)

Double Heating of Upper and Lower Jaws

Gas Pressure 0.7 MPa of Air

Dimensions 455mm (L) *320mm (W) *440mm (H)

Port Size Ф6 mm PU Hose

Power AC 220V 50Hz

Standard

ASTM F2029, QB/T 2358, YBB 00122003
