Digital motorized automatic torque tester Bottle cap auto twisting torque tester

Place of Origin China
Brand Name Cell Instruments
Certification CE
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description

Motorized automatic torque tester is for the locking and opening force test of bottle caps and can be operated in clockwise and counter clockwise directions.



Motorized automatic torque tester conforms to standards: ASTM D2063, ASTM D3198, ASTM D3474, DIN EN 12377



The MCT-01 Motorized automatic torque tester has below features

● PLC control unit and touch screen operation
● Both locking & opening force can be measured
● Static & rotatory torque measuring up to 10 Nm
● Test parameter and data storage
● Automatic rotating
● Micro-printer
● RS232 port and professional software (optional)

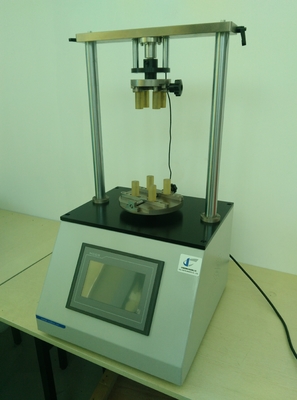

Digital motorized automatic torque tester Bottle cap auto twisting torque tester 0


Test Range 10 Nm (Standard)
Accuracy 1% FS
Clamp Range 15mm-140mm
Speed Range 0.01~15RPM
Dimension 340 mm (L) x 430 mm (W) x 750 mm (H)

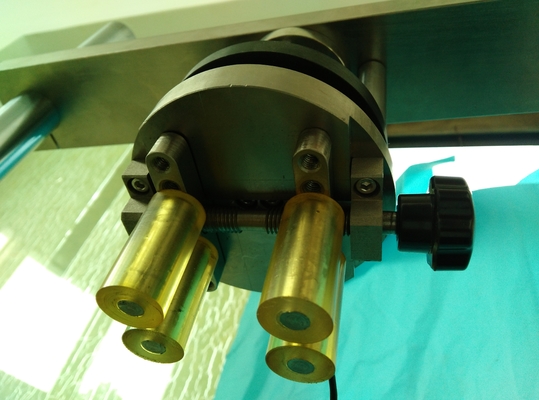

Digital motorized automatic torque tester Bottle cap auto twisting torque tester 1

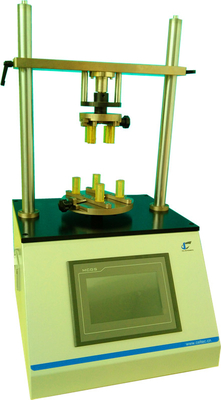

Digital motorized automatic torque tester Bottle cap auto twisting torque tester 2
