Digital motorized automatic torque tester Bottle cap auto twisting torque tester

1 set
MOQ
Digital motorized automatic torque tester Bottle cap auto twisting torque tester
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: China
Brand Name: Cell Instruments
Payment & Shipping Terms
Packaging Details: export carton
Delivery Time: 7 days
Payment Terms: TT LC
Supply Ability: 100 set/month
Product Description

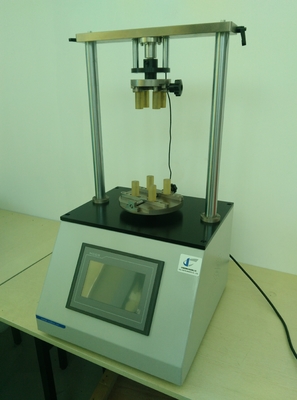

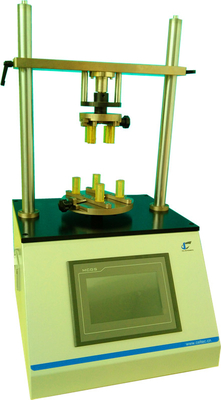

Motorized automatic torque tester is for the locking and opening force test of bottle caps and can be operated in clockwise and counter clockwise directions.



Motorized automatic torque tester conforms to standards: ASTM D2063, ASTM D3198, ASTM D3474, DIN EN 12377



The MCT-01 Motorized automatic torque tester has below features

● PLC control unit and touch screen operation
● Both locking & opening force can be measured
● Static & rotatory torque measuring up to 10 Nm
● Test parameter and data storage
● Automatic rotating
● Micro-printer
● RS232 port and professional software (optional)







Digital motorized automatic torque tester Bottle cap auto twisting torque tester 0


Test Range 10 Nm (Standard)
Accuracy 1% FS

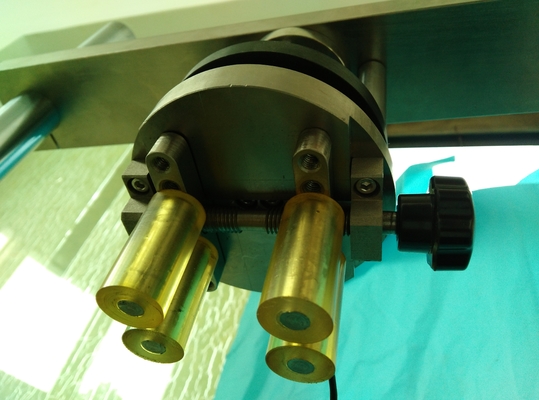

Clamp Range 15mm-140mm
Speed Range 0.01～15RPM
Dimension 340 mm (L) x 430 mm (W) x 750 mm (H)

Digital motorized automatic torque tester Bottle cap auto twisting torque tester 1





Digital motorized automatic torque tester Bottle cap auto twisting torque tester 2
