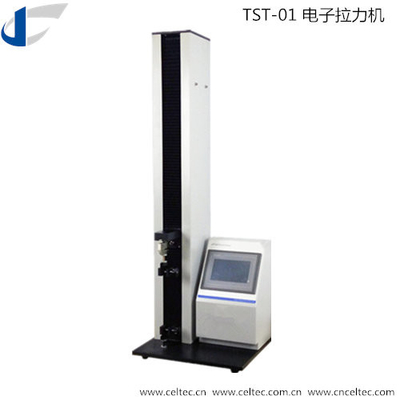

Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester

I'm Online Chat Now

Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester

China Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester supplier
Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester supplier Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester supplier Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester supplier Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester supplier Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester supplier

Large Image :  Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester

Product Details:

Place of Origin: China
Brand Name: Cell Instruments
Model Number: TST-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: export carton
Delivery Time: 7 days
Payment Terms: TT LC
Supply Ability: 100 sets/m
Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description
Product Name: Nylon Material Tensile Testing Machine,Electronic Tensile Testing Machine Accuracy: ±0.5%
Test Speed: 1-500mm/min (adjustable ) Screw: High Precise Ball Screw

Desk Top Digital Tensile Tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials,fabrics, rubber, paper, etc.





Desk Top Digital Tensile Tester for Lab Single column tension and elongation testerDesk Top Digital Tensile Tester for Lab Single column tension and elongation tester



Bench top tensile tester TST-01 features

  1. 7 inch TFT touch screen makes parameter setting and test operation easy and convenient.
  2. PLC programmable logic controller realizes precise control of the driving system and the overall performance of the instrument.
  3. Precision ball screw for accurate speed and displacement.
  4. Test speed is adjustable.
  5. Multiple test items are available.
  6. Multiple fixtures available for other types of pulling and compression tests.
  7. Limiting device and automatic returning function ensure safe operation.
  8. microprinter(optional)

Bench Top Tensile Tester Technical Specifications

Test Range 0-500N (Standard, 50N,100N,200N,1000N are optional)
Speed 1-500 mm/min
Accuracy 0.5% F.S.
Effective stroke 800mm



Desk Top Digital Tensile Tester for Lab Single column tension and elongation tester



Bench Top Tensile Tester Standards

ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113



Desk Top Digital Tensile Tester for Lab Single column tension and elongation testerDesk Top Digital Tensile Tester for Lab Single column tension and elongation tester
