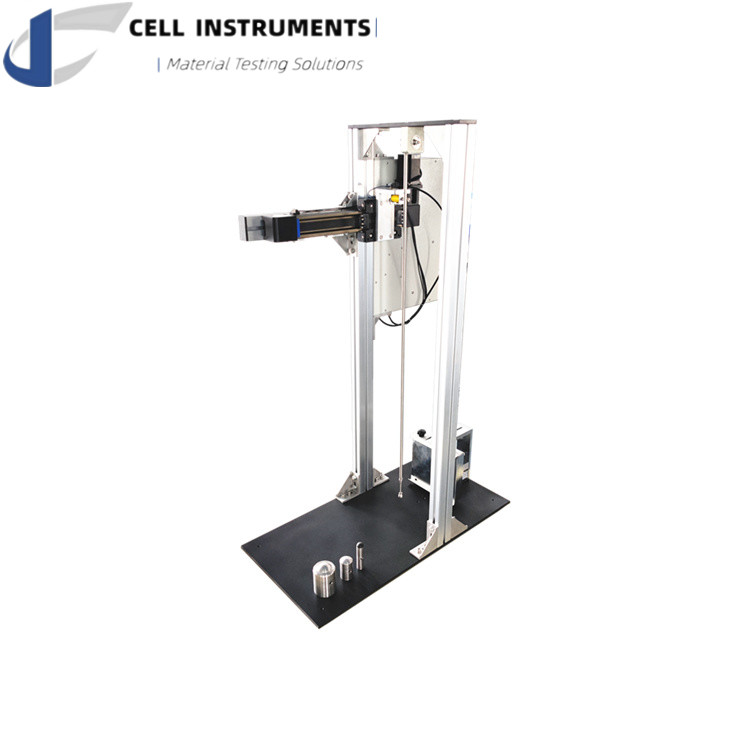

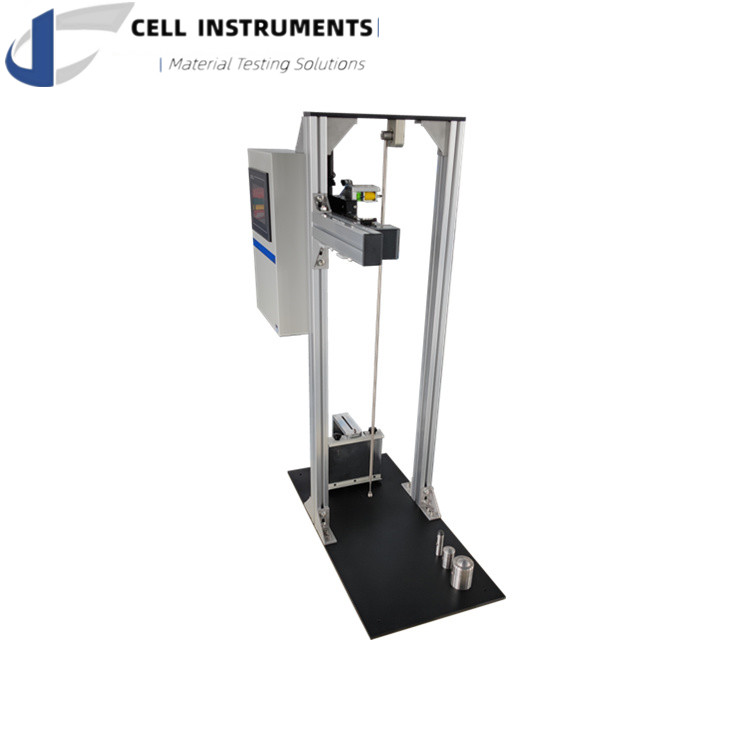

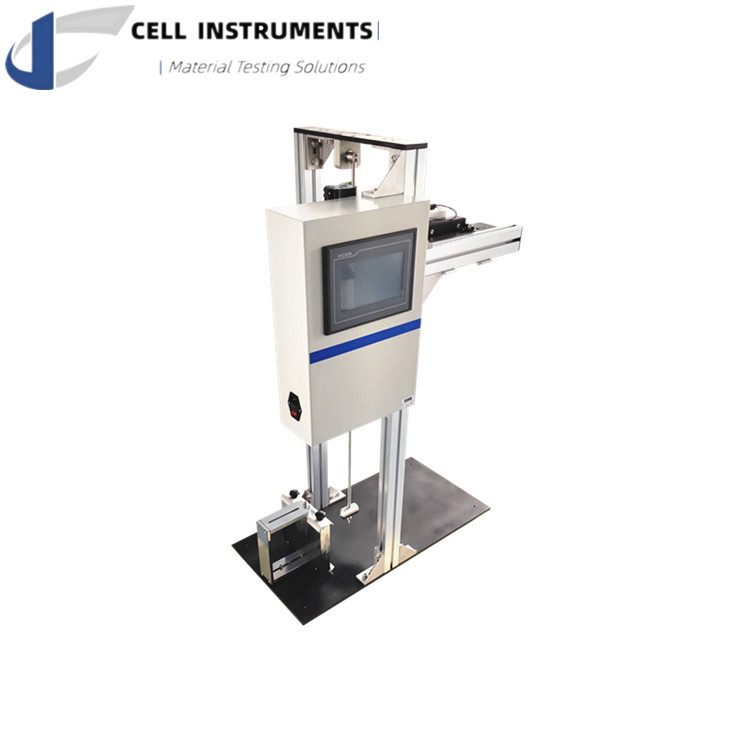

Introduction of PHS-01 Pendulum Hammer Striking Tester

Background

In the realm of mechanical robustness testing for equipment and products, the PHS-01 Pendulum Hammer Striking Tester takes center stage, adhering to the international standard IEC 60068-2-75. This standard is specifically crafted to evaluate the ability of specimens to withstand rigorous impacts, offering crucial insights into the mechanical robustness and safety of products.

Purpose

The PHS-01 Pendulum Hammer Striking Tester serves as a pivotal tool in assessing the impact severity a sample or specimen can endure. With an auto-lifting pendulum hammer, this tester provides a comprehensive solution for determining the robustness of materials and products, essential for ensuring their reliability and safety in environments prone to mechanical stresses.

Technical Features of PHS-01 Pendulum Hammer Striking Tester

Structural Composition

The PHS-01 boasts a sturdy structure, primarily composed of a control box, a pendulum lifting and releasing unit, and a sample clamping unit. This composition ensures stability and durability in the testing process.

Control System

Driven by industrial-level PLC control, the PHS-01 is not only stable but also user-friendly, featuring an HMI touch screen interface. The synchronized belt-driven pendulum lifting mechanism, combined with magnetic pendulum releasing, streamlines the testing process.

Automatic Impact Control

The tester's standout feature is its ability to automatically lift the hammer to predefined heights with a simple click on the HMI touch screen. This automated process ensures accuracy and efficiency during testing.

Sample Mounting Fixture

The PHS-01 is equipped with a strictly standard-conformed sample mounting fixture, adjustable to plywood thickness and rotatable for maintaining the sample perpendicular to the impact hammer direction. This attention to detail contributes to the precision of impact testing.

Versatility

With different striking elements available, the PHS-01 caters to a variety of testing needs. The dual language display further enhances its usability on an international scale.

Why do you need PHS-01 Pendulum Hammer Striking Tester?

In industries where product safety and reliability are paramount, the PHS-01 Pendulum Hammer Striking Tester emerges as an indispensable tool. Its ability to simulate and assess impact severity provides manufacturers, researchers, and quality control professionals with critical data for ensuring their products meet rigorous standards.

What is the purpose of the PHS-01 Pendulum Hammer Striking Tester?

The primary purpose of the PHS-01 Pendulum Hammer Striking Tester is to evaluate the impact resistance of materials and products. By subjecting samples to controlled impacts using an auto-lifting pendulum hammer, the tester helps determine the specimen's ability to withstand specific levels of impact severity. This information is crucial for assessing the durability and suitability of materials and products across various applications.

Application

The PHS-01 Pendulum Hammer Striking Tester finds application in diverse industries such as plastics, paper, textile, food, pharmaceuticals, toiletries, printing, adhesives, and more. Its versatility makes it a go-to choice for research facilities in enterprises, colleges, universities, and official laboratories.

Specifications

1. Control System: PLC control (industrial level) and HMI touch screen operation
2. Pendulum Mechanism: Synchronized belt-driven lifting and magnetic releasing
3. Automatic Impact Control: Predefined impact heights selected via HMI touch screen
4. Sample Mounting Fixture: Standard-conformed, adjustable, and rotatable
5. Versatility: Different striking elements available
6. Display: Dual language display
7. Standards: Complies with IEC 60068-2-75 and GB/T 2423.55

Standards

The PHS-01 Pendulum Hammer Striking Tester adheres to international standards, particularly IEC 60068-2-75 and GB/T 2423.55. These standards ensure that the testing methods employed by the PHS-01 are globally recognized, providing a benchmark for assessing the mechanical robustness and safety of products in various industries.
