Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard

  • Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard
  • Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard
Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number ZBH-01
Minimum Order Quantity 1 Set
Price GET AN OFFER
Packaging Details Plywood Carton
Delivery Time 3 days
Payment Terms L/C, T/T
Supply Ability 100 Sets/Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Range 0～4 Mm Resolution 0.001mm
Contact Area 200±5 Mm² Contact Pressure 100±10kPa
Measuring Surface Parallelism ≤0.005mm Display Error ±0.05％
Leave a Message
Product Description

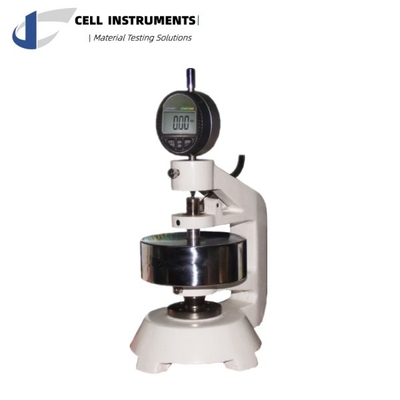

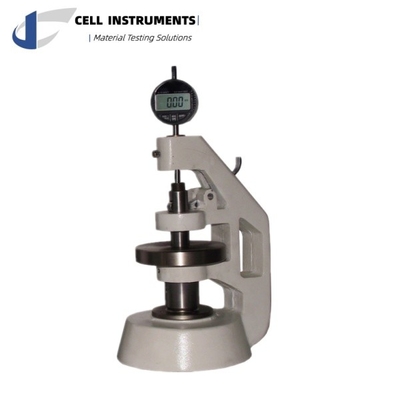

ZBH-01 Paper and Board Thickness Testing Gauge

Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard 0

ZBH-01 Paper and Board Thickness Tester is used to measure the thickness of paper and board. It can measure the thickness of a single sheet of paper or board and the thickness of a pack of sheets of paper as a bulking thickness. It is not applicable to corrugated fibreboard.

Description

Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard 1

ZBH-01 Paper and Board Thickness Tester, incorporating two plane, parallel, circular pressure faces, between which thepaper or board is placed for measurement.

Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard 2
The pressure exerted between the pressure faces during the thickness measurement shall be (100±10) KPa
The two pressure faces shall form an integral part of the micrometer, such that one face is fixed (the anvil) and the other is movable in a direction perpendicular to the plane of the fixed face.

Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard 1
One face shall be (16.0±0.5) mm in diameter and the second face shall be of such a size that it is in contact with the whole area of the other face when the micrometer reads zero. Thus, a circular region of a test piece. nominally 200 mm² in area, is subjected during the thickness measurement to the pressure exerted by the faces.

Technical features

Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard 2

  1. Reset ZERO at any point
  2. ON/OFF power switch
  3. Measurement units conversion
  4. 0.001mm resolution

Technical Data

Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard 5

ZBH-01
Test Range 0～4 mm
Resolution 0.001mm
Contact Area 200±5 mm²
Contact Pressure 100±10kPa
Measuring surface parallelism ≤0.005mm
Display error ±0.05％

FAQ

Accurate And Easy-To-Operate Cardboard Thickness Gauge Portable laboratory thickness meter for pape and paperboard 0

  1. What is single sheet thickness?
    Single sheet thickness is the distance between one surface of a paper or board and the other, measured under an applied static load.
  2. What is bulking thickness?
    Bulking thickness is the thickness of a single sheet of paper, calculated from the thickness of several superimposed sheets in a pack, and measured under an applied static load.
