Concora Fluter For Corrugated Cardboard ISO 7263 Corrugating Medium Sample Make Instrument
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Depth Of Teeth | 4.75+/-0.05mm | Distance Between Teeth | 8.50 ± 0.05 Mm |
|---|---|---|---|
| Flute Type | A (standard) | Speed | 4.5 ± 0.1 R/min |
| Sample Width | 12.7 Mm | Pressure Range | 50-140 N Force Indication Accuracy ± 2 N |
| Temperature Range | Ambient~200℃ | Standard Working Temperature | 175 ℃ ± 8℃ |
| Temperature Resolution | 1℃ | Power | AC 220V 50Hz |
Product Description

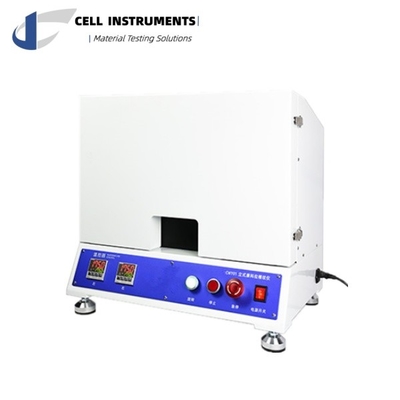

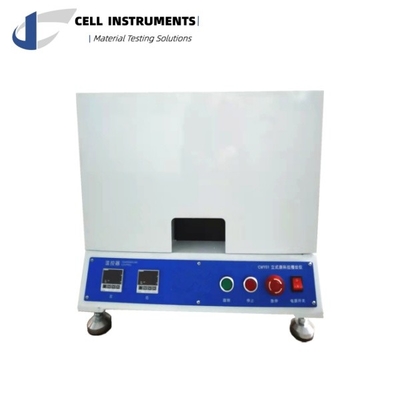

Introduction of CWY-01 Concora Medium Fluter
CWY-01 Concora Medium Fluter is used as a sampling machine for corrugated board as standard to A flute and other optional flutes.
The sample is then taken to be tested to determine the compressibility strength
using the C.C.T. (Corrugated Crush Test) & the C.M.T. (Corrugating Medium Test)
CWY-01 Concora Medium Fluter can produce 0.5 inch (12.7 mm) wide samples. The two corrugating discs inside have a good heat distribution, which is essential for forming the correct groove.
Test Principle
After turning on and temperature setting, wait for the disc temp to reach set value.
Then put the sample from top, and the corrugated sample will come out from below.
The sample is matched with the corresponding CMT rack and comb or CCT sample holder. Then sample is analyzed by a high-precision compressive strength tester.
Features
- Rugged and durable equipment
- The different corrugating discs can be replaced
- Adjustable pressure range and it can be calibrated
- Vertical design simplifies sample feeding
- The built-in heating inside the discs means faster and uniform temp distribution.
- Precise temperature control
- The space-saving design.
Main Parameter
| CWY-01 | |
| Radius Of Teeth At Peak | R 1.5 士 0.1mm |
| Radius Of Teeth At Base | R 2.0 士 0.1mm |
| Depth Of Teeth | 4.75+/-0.05mm |
| Distance Between Teeth | 8.50 ± 0.05 mm |
| Flute Type | A (standard) |
| Speed | 4.5 ± 0.1 r/min |
| Sample Width | 12.7 mm |
| Pressure Range | 50-140 N Force indication accuracy ± 2 N |
| Temperature Range | Ambient~200℃ |
| Standard Working Temperature | 175 ℃ ± 8℃ |
| Temperature Resolution | 1℃ |
| Power | AC 220V 50Hz |
