xTest Area | 100±0.2cm² | Water Consumption | 100±5ml |
---|---|---|---|
Metal Roller Width | 200±0.5mm | Metal Roller Weight | 10±0.5kg |
Dimension | (396*315*300)mm LWH |

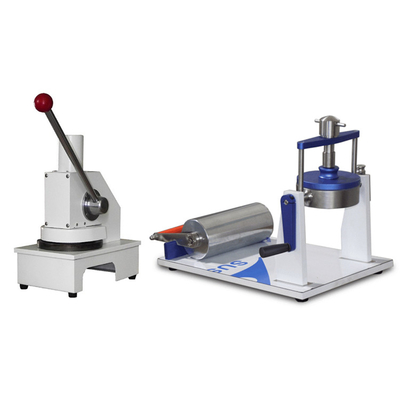

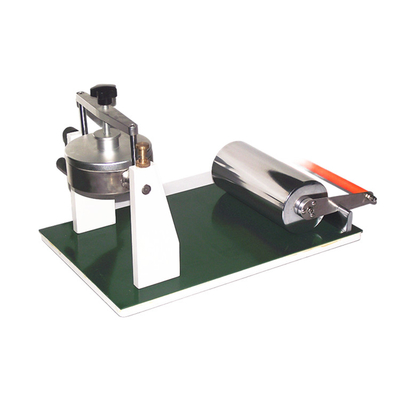

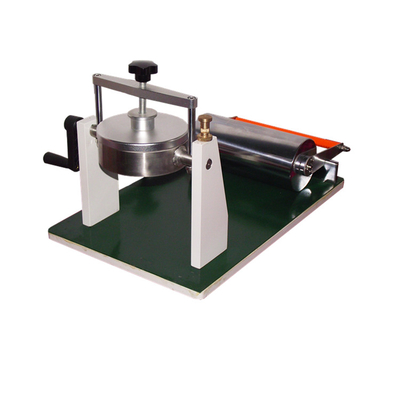

Introduction of COBB-01 COBB Tester
COBB-01 COBB Tester is used for assessing the water absorption of paper and paperboard through the Cobb method. It proves effective in sizing paper and determining water absorption on cardboard surfaces, but it is not recommended for use on basic paper or embossed paper with a basis weight below 50g/m², having low sizing degree, or exhibiting numerous pinholes. Additionally, it is not suitable for assessing unsized paper and cardboard accurately, nor does it provide an accurate evaluation of the writing performance of paper or cardboard.
About COBB Test
The Cobb tester evaluates the water absorption capability of paper or cardboard surfaces. The Cobb value represents, under specific conditions and within a specified timeframe, the mass of water absorbed by the carton board surface per unit area, expressed in grams per square meter (g/m²).
The total recommended test time by international standards for the removal of excess water and the execution of water absorption is as follows:
Recommended time (S) |
Mark | Time of remove excess water (S) | Time to finish absorbing water (S) |
30 | cobb30 | 20±1 | 30±1 |
60 | cobb60 | 45±1 | 60±2 |
120 | cobb120 | 105±2 | 120±2 |
300 | cobb300 | 285±2 | 300±2 |
1800 | cobb1800 | 1755~1815 | After remove excess water 15±2 |

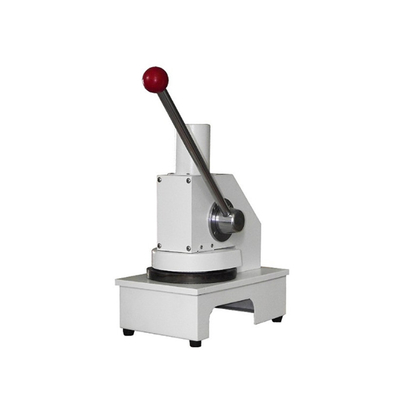

What is COBB sample cutter?
The COBB sample cutter is an essential tool for absorption testing, swiftly and accurately cutting a sample with a specified area of φ125mm.It’s a stamping type sampler and proves to be an ideal apparatus for corrugated board and carton production, research, quality supervision, inspections, and various other departments.
Why do you need a COBB Tester?
Paper and cardboard are common materials used for printed content, and their water absorption properties can impact print quality. Knowing the Cobb value helps ensure that the selected materials are suitable for printing, minimizing issues related to ink smudging or poor print quality.
Cobb testing is a quality control measure to ensure that the materials meet industry standards. Material scientists use this data to optimize the composition of paper and cardboard, tailoring it for specific uses based on its water absorption characteristics.
Advantages of COBB-01 COBB Tester
- Stainless steel made
- Standard conformed metal roller
Test Principle of COBB-01 COBB Tester
Before conducting the test, weigh the sample. When one side of the sample comes into contact with water for a specified duration, remove the excess moisture from the dried sample and immediately weigh it. Express the results by the increase in mass per unit area of the sample, measured in grams per square meter (g/m²).
Application
The Cobb test is commonly used to measure the water absorption capacity of porous materials, particularly paper and cardboard. It is crucial for assessing the ability of these materials to absorb water, which can impact various applications, such as printing, packaging, and paper-based products. The Cobb test is particularly relevant for materials where water absorption characteristics are significant, and maintaining specific standards is essential for quality control and performance optimization.
Main Parameter
COBB-01 | |
Test Area | 100±0.2cm² |
Water Consumption | 100±5ml |
Metal Roller Width | 200±0.5mm |
Metal Roller Weight | 10±0.5kg |
Dimension | (396*315*300)mm LWH |
COBB Sample Cutter | |
Sampling Diameter | Ø125mm |
Sampling error | ±0.2mm |
Sampling Thickness | (0.1~2.0)mm |
Dimension | (250*280*450) mm LWH |
Standards
GB/T1540, ISO 535, QB/T1668, TAPPI T441
Configuration
a) Standard configuration: COBB-01 COBB Tester, Metal Roller, manual
b) Optional configuration: Blotting paper, COBB sample cutter
FAQs
- What is the COBB value?
Cobb value is the calculated mass of water absorbed in a specified time by 1 m² of paper or board under specified conditions - What is absorption time?
The time from the beginning of contact between water and sample to the end of water absorption. - Why is the COBB test important for paper quality?
A: The COBB test is crucial for assessing the water absorption properties of paper. This information is vital for maintaining print quality, preventing issues like ink smudging, or compromised print standards, which is especially important in the production of high-quality printed materials. - What is the metal roller used in COBB testing?
Metal roller used in COBB test is a stainless steel roller, having a smooth face 20 cm wide and eighing 10.0 × 0.5 kg (22 × 1.1 lb).
