Paper Dirt Tester For Paper And Cardboard Dust Measurement Printing Quality Testing instruemnt
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lighting | AC 220V 20W Fluorescent Lamp | Lighting Angle | 60° |
|---|---|---|---|
| Working Area | 0.0625m², 360° Rotatable | Standard Dirt Picture | 0.05~5.0（mm²） |
| Power | AC 220V 50Hz |
Product Description

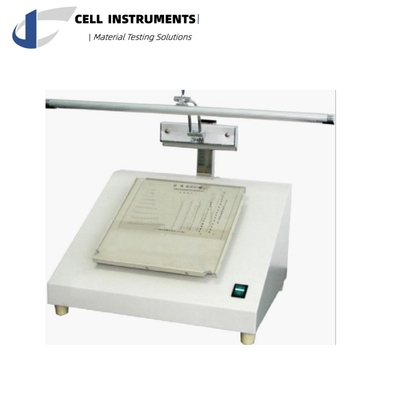

Introduction of PDT-01 Paper Dirt Tester
PDT-01 Paper Dirt Tester is made according to GB/T 1541“Paper and board-Determination of dirt”. The degree of dirt is the amount of dirt with a certain area per square meter of paper and cardboard, or the equivalent area (mm2) of dust on paper and cardboard per square meter.
Significance
Dust is a type of defect of paper appearance, which can be inspected by eye, hand, and nose. It is impurities such as black, yellow, dark yellow, yellow brown, or brown dots that are significantly different from the color of the paper.
A high degree of dirt will reduce the printing quality. In the printing of coated paper, cardboard, and white cardboard, especially in color printing, the effect of the degree of dust is particularly obvious, affecting the printing quality.
Specifications
| Lighting | AC 220V 20W fluorescent lamp |
| Lighting angle | 60° |
| Working area | 0.0625m², 360° rotatable |
| Standard dirt picture | 0.05~5.0(mm²) |
| Power | AC 220V 50Hz |
Standards
GB/T 1541 “Paper and board-Determination of dirt”
