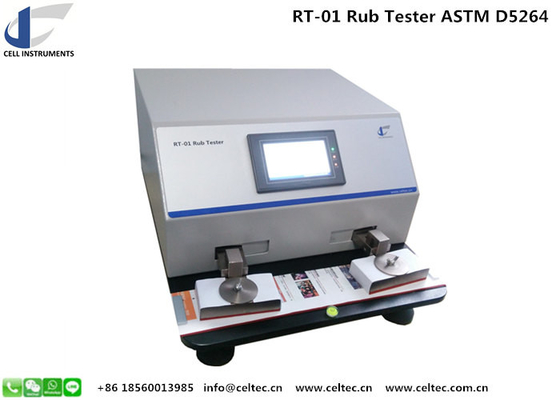

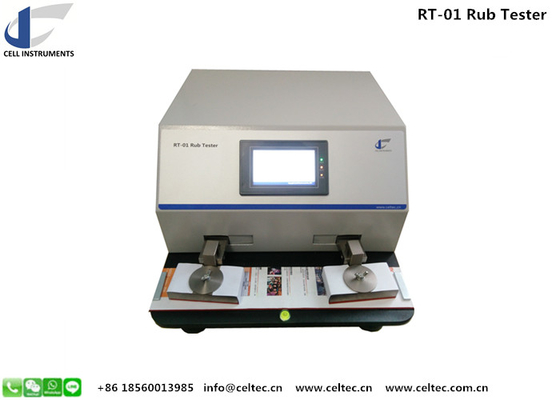

Printing Abrasion Resistance Tester Material Testing Instruments Abrasion Resistance Tester

Large Image : Printing Abrasion Resistance Tester Material Testing Instruments Abrasion Resistance Tester

Product Details:

Place of Origin:	China
Brand Name:	Cell Instruments
Model Number:	RT-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	quote on demand
Packaging Details:	export carton
Delivery Time:	3~5 days
Payment Terms:	TT LC

Contact Now

Detailed Product Description

Power:	Electronic	Usage:	Abrasion Tester
Power Supply:	AC110/220V±10%	Warranty:	12 Months
Application:	Printed Products And Cellophane	Name:	Digital Printing Ink Rub Resistance Tester ASTM D5264,Digital Printing Ink Rub Abrasion Decolorization Tester,Printing Paper Testing Instruments Abrasion Ink Rub Tester
Friction Load:	2lb / 4lb

Printing abrasion resistance tester is designed to evaluate the scuffing or rubbing resistance of printed or coated surface of paper, paperboard, film, laminates, substrates, etc.

Printing abrasion resistance tester conforms to TAPPI T830 and ASTM D5264 Standard Practice for Abrasion Resistance of Printed Materials.

Printing Abrasion Resistance Tester Material Testing Instruments Abrasion Resistance Tester

Printing abrasion resistance tester features

1. PLC control and touch screen operation

2. 4 test modes of dry rub, wet rub, wet bleed & wet transfer, and wet smear

3. Test speed random setting

4. Dual stations arc movement structure

5. Buzzer reminding after test is finished

Printing abrasion resistance tester technical data

Rub Pressure	8.9 N(2lb)Standard; 17.8N(4lb)
Rub Speed	20~120 cpm
Number of Specimens	1 ~ 2
Power Supply:	AC 110~220V
Instrument Dimension:	390 mm (L) x 480 mm (W) x 220 mm (H)

Printing Abrasion Resistance Tester Material Testing Instruments Abrasion Resistance Tester

Cell Instruments is committed to development of material testing instruments for plastic, paper, bottle, box, containers, etc., PLC program and machinery customization. Please contact +86 531 88977152 (mail: info#celtec.cn Skype: smrelin ) for more information. Let us be a cell of your quality.

Printing Abrasion Resistance Tester Material Testing Instruments Abrasion Resistance Tester
