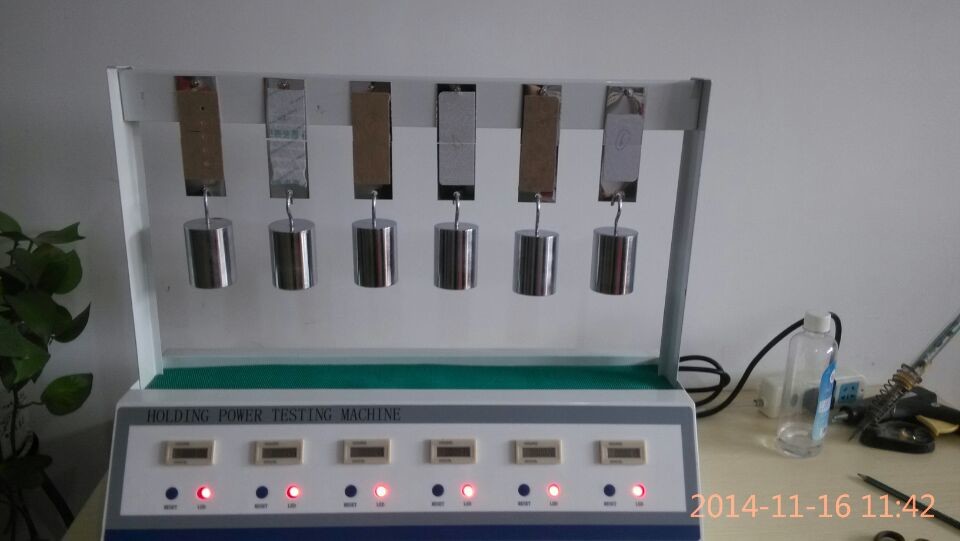

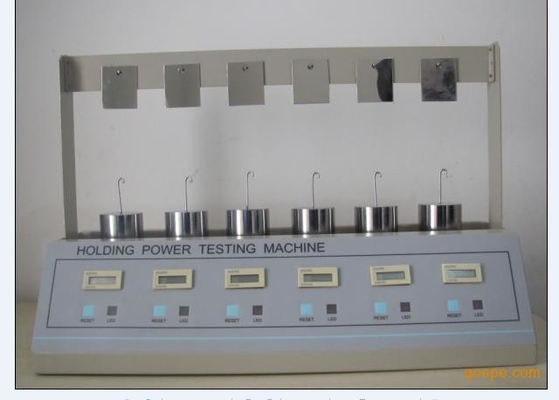

Holding Power Tester of Pressure Sensitive Tapes

Holding Power Tester of Pressure-Sensitive Tapes is for the test of lasting adhesive of pressure sensitive adhesive tapes, labels and other interrelated products.

Standard: ASTM D3654 Test Method for Holding Power of Pressure-Sensitive Tapes

The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property could be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at the load.

Holding Power Tester of Pressure-Sensitive Tapes Features

1. Standard test plates and weights
2. Six testing stations
3. Auto-timing, locking and reminding
4. Microcomputer control
5. LCD display

Holding Power Tester of Pressure-Sensitive Tapes Parameters

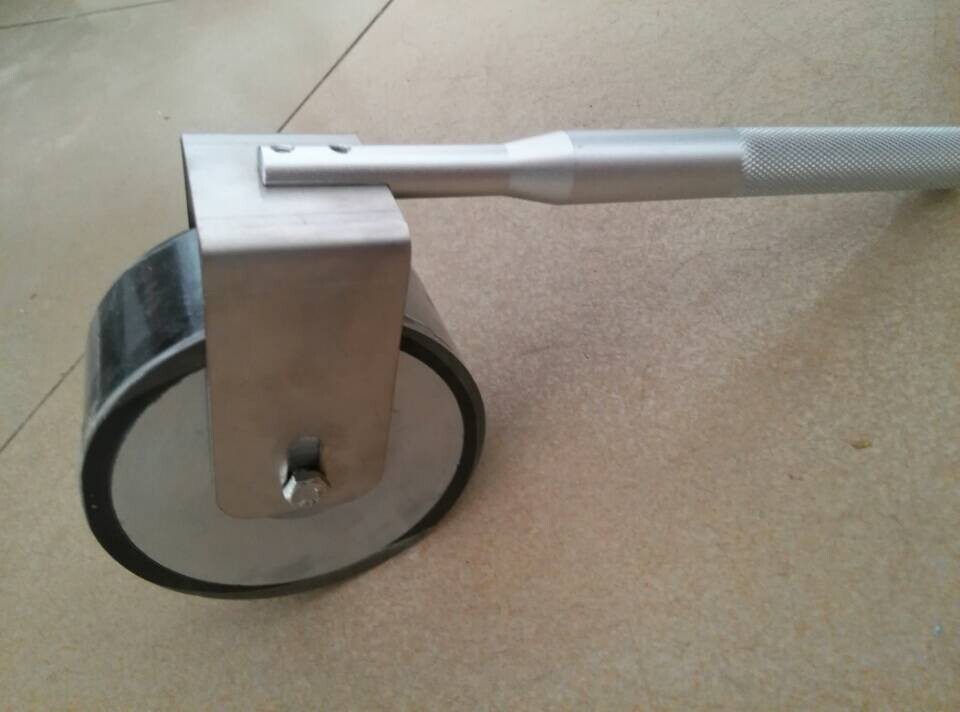

Standard Roller 2000 g ±100 g

Weight 1000 g ±10 g

Test Plate 60 mm (L) x 40 mm (W) x 1.5 mm (H)

Timing Range 0 ~ 9999 h

Number of Stations 6

Instrument Dimension 600 mm (L) x 240 mm (W) x 400 mm (H)

Power Supply AC 220V 50Hz

Net Weight 20 kg
