xMeasuring Range | 1~99999 Times | Folding Endurance (Logarithm) | 0~4.99 |
---|---|---|---|
Folding Angle | (135 ± 2)° | Folding Speed | (175±10)time/min |
Sample Width | (15 ± 0.1)Mm | Tension Force | (4.91~14.72)N |
Folding Opening Crack Distance | 0.25mm/0.50mm/0.75mm/1.00mm/1.25mm(Choose One) | Arc Radius Of The Fold | (0.38±0.02)Mm |
Display | 5” Touch Screen | Printer | Modular Integrated Thermal Printer |
Environment | Ambient(20 ± 10)°C;Rh < 85% | Power | Ac220v, 50hz |

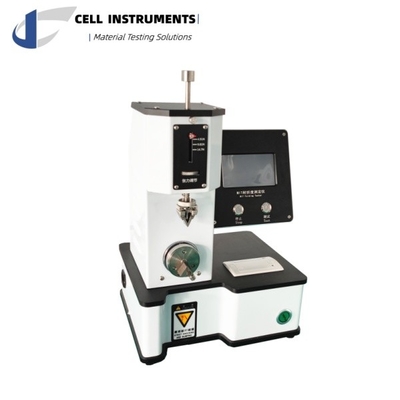

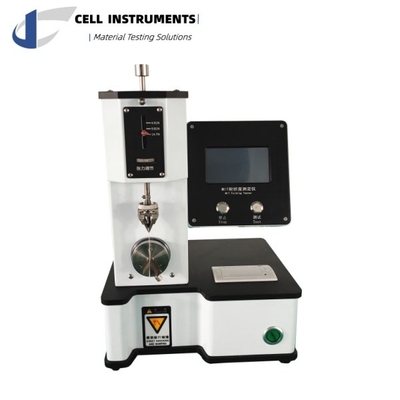

Introduction of NZD-01 MIT Folding Endurance Tester
NZD-01 MIT Folding Endurance Tester is designed for assessing the fold endurance performance of sheet materials such as paper, cardboard, and tobacco sheets, with a thickness of less than 1.25 mm.
During the test, specimens undergo double folding under standard tension conditions, and the logarithm (base 10) of the number of double folds at the point of specimen fracture is measured. This logarithmic value is referred to as fold endurance, serving as a crucial metric to gauge a material's resistance to damage during bending or folding. Typically, higher fold endurance values indicate greater durability and resistance to folding stress.
The MIT Fold Endurance Tester finds applications in various industries, including paper production, cardboard manufacturing, and the tobacco industry. Conducting this test allows experts in materials science to evaluate how materials might withstand folding and bending stresses encountered in real-world usage scenarios. This information aids manufacturers and researchers in selecting or improving materials based on their performance characteristics.
Technical Features
- Adjustable folding rate from 20 to 200 double folds per minute
- Various tension weights available
- Color touchscreen operation
- Equipped with various folding heads, suitable for a wide range of samples
- Micro printer embedded
Test Principle
Level the instrument. Turn the oscillating folding head so that the slot is vertical. Place a weight on top of the plunger, equivalent to the tension desired on the specimen, normally 9,81 N, tap the plunger sideways to eliminate friction, and check and set the load indicator. Lock the plunger in Position and, without touching the part of the Strip to be folded, clamp the test piece firmly and squarely in the jaws, with the surface of the test piece lying wholly within one plane, i.e. flat, and with the sides free from the oscillating jaw mounting plate. Unscrew the plunger lock and remove the weight, thus applying the specified tension to the Strip. When removing the weight, also observe the load indicator for possible movement. If movement occurs, readjust the tension to that shown with the weight on the plunger. Commence folding and continue until the test piece breaks, when the counter will automatically stop. Record the number of double folds required to break the test piece. Return the counter reading to Zero.
Standards
ISO 5626,TAPPI T511,GB/T 457,QB/T 1049
Configuration
- Standard configuration: NZD-01 MIT Folding Endurance Tester, paper roll, manual, calibration certificate, power cord.
- Optional configuration: Non-Standard jaws
Main Parameter
NZD-01 | |
Measuring Range | 1~99999 Times |
Folding Endurance (Logarithm) | 0~4.99 |
Folding Angle | (135 ± 2)° |
Folding Speed | (175±10)次/分钟 |
Sample Width | (15 ± 0.1)Mm |
Tension Force | (4.91~14.72)N |
Folding Opening Crack Distance | 0.25mm/0.50mm/0.75mm/1.00mm/1.25mm(Choose One) |
Arc Radius Of The Fold | (0.38±0.02)Mm |
Display | 5” Touch Screen |
Printer | Modular Integrated Thermal Printer |
Environment | Ambient(20 ± 10)°C;Rh < 85% |
Power | Ac220v, 50hz |
Technical Parameters of Special Sampler:
Sampling Size: 150mm15mm
Parallelism of the Two Long Sides: ≤0.015mm
Sampling Thickness: (0.05~1.2) mm
Dimensions: Approximately 580220*620mm
