Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material

  • Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material
  • Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material
  • Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material
  • Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material
Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number ZBH-01
Minimum Order Quantity 1 Set
Price GET AN OFFER
Packaging Details Plywood Carton
Delivery Time 3 days
Payment Terms L/C, T/T
Supply Ability 100 Sets/Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Range 0～4 Mm Resolution 0.001mm
Contact Area 200±5 Mm² Contact Pressure 100±10kPa
Measuring Surface Parallelism ≤0.005mm Display Error ±0.05％
Leave a Message
Product Description

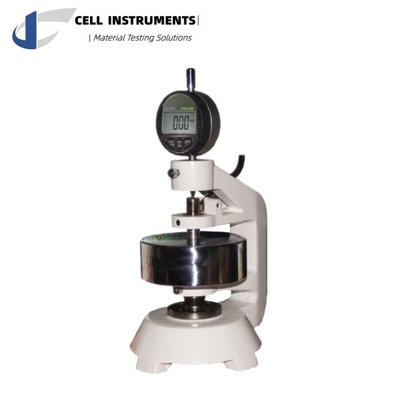

ZBH-01 Paper and Board Thickness Testing Gauge

Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material 0

ZBH-01 Paper and Board Thickness Tester is used to measure the thickness of paper and board. It can measure the thickness of a single sheet of paper or board and the thickness of a pack of sheets of paper as a bulking thickness. It is not applicable to corrugated fibreboard.

Description

Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material 1

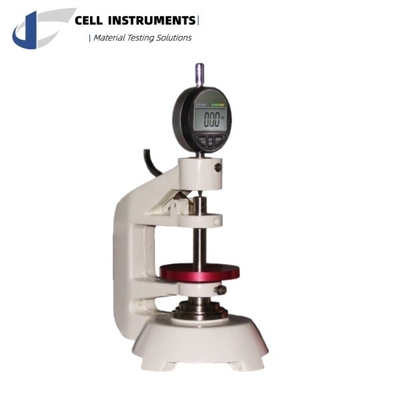

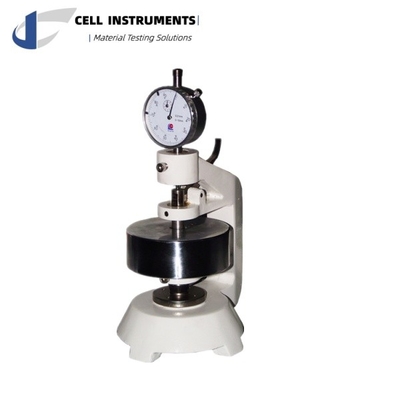

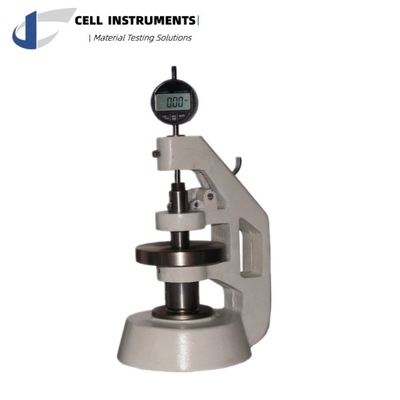

ZBH-01 Paper and Board Thickness Tester, incorporating two plane, parallel, circular pressure faces, between which thepaper or board is placed for measurement.

Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material 2
The pressure exerted between the pressure faces during the thickness measurement shall be (100±10) KPa
The two pressure faces shall form an integral part of the micrometer, such that one face is fixed (the anvil) and the other is movable in a direction perpendicular to the plane of the fixed face.

Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material 1
One face shall be (16.0±0.5) mm in diameter and the second face shall be of such a size that it is in contact with the whole area of the other face when the micrometer reads zero. Thus, a circular region of a test piece. nominally 200 mm² in area, is subjected during the thickness measurement to the pressure exerted by the faces.

Technical features

Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material 2

  1. Reset ZERO at any point
  2. ON/OFF power switch
  3. Measurement units conversion
  4. 0.001mm resolution

Technical Data

Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material 5

ZBH-01
Test Range 0～4 mm
Resolution 0.001mm
Contact Area 200±5 mm²
Contact Pressure 100±10kPa
Measuring surface parallelism ≤0.005mm
Display error ±0.05％

FAQ

Paper And Paperboard Thickness Testing Gauge Single Sheet And Bulk Thickness Testing Device For Paper Material 0

  1. What is single sheet thickness?
    Single sheet thickness is the distance between one surface of a paper or board and the other, measured under an applied static load.
  2. What is bulking thickness?
    Bulking thickness is the thickness of a single sheet of paper, calculated from the thickness of several superimposed sheets in a pack, and measured under an applied static load.
