Beehive carton plyboard compressive force ECT, RCT, PCT, FCT tester Board Crush Tester

Place of Origin	China
Brand Name	Cell Instruments
Certification	CE
Minimum Order Quantity	1 SET
Price	Get An Offer
Packaging Details	Plywood Carton
Delivery Time	3~5 days
Payment Terms	TT, LC
Supply Ability	At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Leave a Message

Product Description

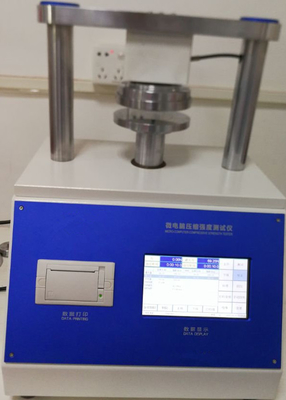

YSD-01 Crush Tester is used for the ring crush(RCT) for paper with thickness between 0.15 and 1mm, edge crush(ECT), plybond adhesion (PAT) and flat crush(FCT) test for board. It can also be used for the compression test (CMT) for tube with diameter less than 60mm.

YSD-01 Crush Tester Features

1. Four test modes of RCT, ECT, FCT and PAT available

2. Microcomputer control, auto measuring and intelligent test result judgment, auto returning.

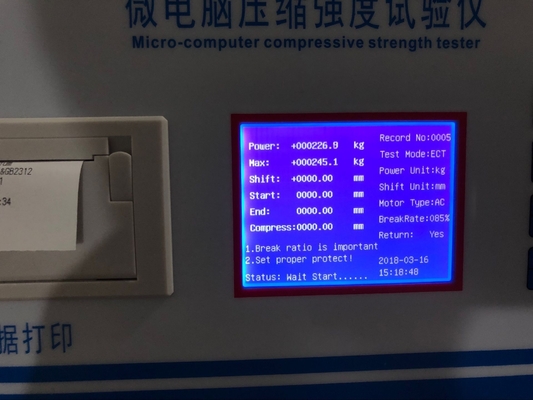

3. Real time display of curve, data auto collecting, calculating, analysis, storage and printing.

4. LCD display, PVC operation manual

5. Synchronous motor drive for precise pressure output.

Beehive carton plyboard compressive force ECT, RCT, PCT, FCT tester Board Crush Tester 0

Crush Tester Technical data

Test range: 5-3000N

Accuracy: ≤±1%

Resolution: 0.01N

Platen parallelism: ≤0.05mm

Upper platen diameter: 125mm

Lower platen diameter: 125mm

Compression speed: 12.5±1mm/min

Stroke: 80mm

Dimension: 400mm(L)×360mm(W)×550mm(H)

Beehive carton plyboard compressive force ECT, RCT, PCT, FCT tester Board Crush Tester 1

Standard

ISO 12192, ISO 3035, ISO 3037, ISO 7263, GB/T2679.6, GB/T6546, GB/T2679.8, GB/T6548
