Cardboard Paper Ink Rub Resistance Tester Film Ink Layer Abrasion Testing Machine

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number RT-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Usage Ink Rub Testing Machine
Power Supply 220V 50Hz Warranty 12 Months
Application Printed Products Product Name Ink Rub Tester
Friction Load 2lb / 4lb Standard ASTM D5264
Leave a Message
Product Description

Cardboard Paper Ink Rub Resistance Tester Film Ink Layer Abrasion Testing Machine

The Cardboard Paper Ink Rub Resistance Tester is a precision laboratory instrument designed to evaluate the rub and abrasion resistance of printed or coated surfaces on materials such as cardboard, paper, film, paperboard, laminated substrates, and packaging materials. This tester is essential for quality control in the packaging, printing, pharmaceutical, beverage, and food industries, where print integrity and surface durability are critical.

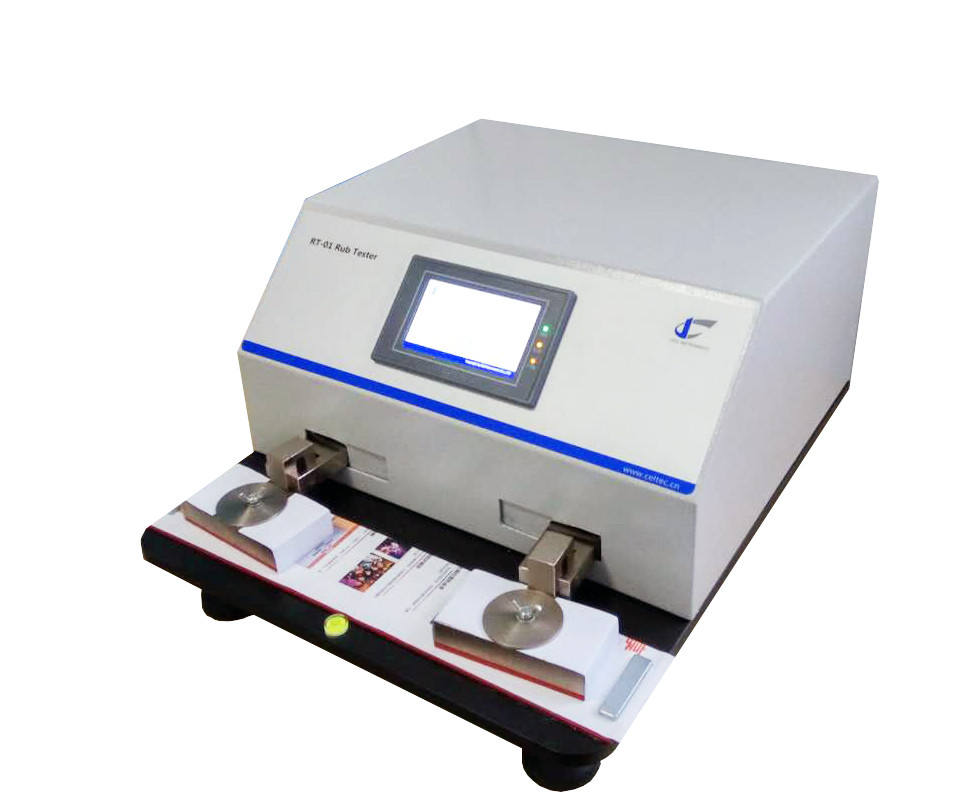

Cardboard Paper Ink Rub Resistance Tester Film Ink Layer Abrasion Testing Machine 0

Manufacturers, converters, and research institutions use this Cardboard Paper Ink Rub Resistance Tester to simulate real-world friction conditions that printed surfaces endure during storage, transportation, and handling. By using this equipment, users can ensure their print quality meets the required durability standards and customer expectations.


Core Applications

This tester is ideal for evaluating the wear resistance and adhesion of ink, coatings, and printed layers on:

  • Corrugated cardboard packaging

  • Paper labels and leaflets

  • Flexible packaging films

  • Pharmaceutical packaging materials

  • Beverage cartons

  • Laminated materials used in food contact applications

By applying repetitive rubbing motion under controlled pressure and speed, the Cardboard Paper Ink Rub Resistance Tester quantifies the print durability to ensure compliance with industry standards and client specifications.


Compliance with Industry Standards

The Cardboard Paper Ink Rub Resistance Tester is fully compliant with internationally recognized test standards:

  • TAPPI T830 – Ink Rub Test for Printed Materials

  • ASTM D5264 – Standard Practice for Abrasion Resistance of Printed Materials by the Sutherland Rub Tester

These standards define best practices for testing abrasion resistance and are critical for ensuring reproducibility and accuracy across different test environments.


Key Features of Cardboard Paper Ink Rub Resistance Tester

  1. Advanced PLC Control with HMI Interface
    Offers intuitive operation with programmable parameters and digital test control to ensure accurate and repeatable results.

  2. Five Distinct Test Modes
    Supports dry rub, wet rub, wet smear, wet bleed or transfer, and functional rub, covering all common ink durability scenarios.

  3. Flexible Test Speed Setting
    Allows adjustable rub speeds ranging from 20 to 120 cycles per minute, ideal for simulating various application environments.

  4. Dual-Station Testing Platform
    Dual specimen stations with arc movement structure enhance efficiency and testing throughput.

  5. Automatic Test Completion Alert
    Integrated buzzer system notifies users when the test cycle is complete.

  6. Precision Cycle Control
    Accurate rub cycle counting with minimal deviation ensures consistency and data integrity.

  7. Robust Mechanical Construction
    Durable build quality suitable for continuous laboratory use in industrial settings.

  8. Compact Footprint
    With dimensions of 390 mm (L) × 480 mm (W) × 220 mm (H), it is well-suited for lab bench operation without occupying excessive space.


Technical Specifications

Parameter Specification
Rub Pressure 8.9 N (2 lb) / 17.8 N (4 lb)
Rub Speed 20–120 cycles per minute
Number of Specimens 1–2 simultaneous tests
Test Modes Dry rub, wet rub, smear, bleed, functional rub
Power Supply AC 220V, 50Hz
Machine Dimensions 390 mm × 480 mm × 220 mm
Display and Operation Touchscreen interface with PLC

Why Choose Our Cardboard Paper Ink Rub Resistance Tester?

  • Reliable Test Performance: Ensures product quality meets brand and regulatory requirements.

  • Versatile Compatibility: Supports a wide range of test substrates and coating types.

  • User-Friendly Interface: Simplifies training and improves test productivity.

  • Test Repeatability: Designed for accurate and reproducible results, crucial for lab validation.

Whether you're a manufacturer validating packaging integrity or a third-party lab conducting comparative rub tests, the Cardboard Paper Ink Rub Resistance Tester delivers unmatched performance and value.


Industries That Benefit from This Tester

  • Packaging – Test print durability on cartons, labels, and wrappers.

  • Printing & Ink Manufacturers – Assess ink adhesion and wear characteristics.

  • Food & Beverage – Ensure labeling withstands moisture and abrasion in supply chains.

  • Pharmaceutical – Validate legibility of critical drug information post-distribution.

  • Academic & Research Institutes – Conduct comparative studies on paper and coating performance.


Testing Process Overview

  1. Specimen Mounting: Attach the printed or coated sample to the specimen plate.

  2. Mode Selection: Choose from dry rub, wet rub, wet smear, or transfer.

  3. Test Setup: Input rub speed, rub count, and pressure settings via the touch screen.

  4. Operation: Start the test and allow the rub heads to perform arc motion.

  5. Result Observation: After testing, evaluate the degradation, discoloration, or ink transfer on the specimen and rubbing medium.

The entire procedure is designed for accuracy, repeatability, and operator safety.


Quality Assurance and Calibration

Every unit of our Cardboard Paper Ink Rub Resistance Tester is delivered with:

  • Factory calibration certificate

  • User manual and operation guide

  • Optional third-party calibration service upon request

  • Warranty and after-sales technical support

Our instruments comply with global quality management systems and are manufactured under strict ISO 9001 conditions.


Optional Accessories

  • Replaceable rub heads for different pressures

  • Specimen mounting plates for various sizes

  • Wet rub solution application kit

  • Digital counter upgrade for extended testing cycles


Contact Us for Inquiries

We specialize in providing lab instruments that meet the rigorous demands of B2B industrial testing. Contact us today for a quote, datasheet, or consultation to help you integrate the Cardboard Paper Ink Rub Resistance Tester into your quality control process.Cardboard Paper Ink Rub Resistance Tester Film Ink Layer Abrasion Testing Machine 1
